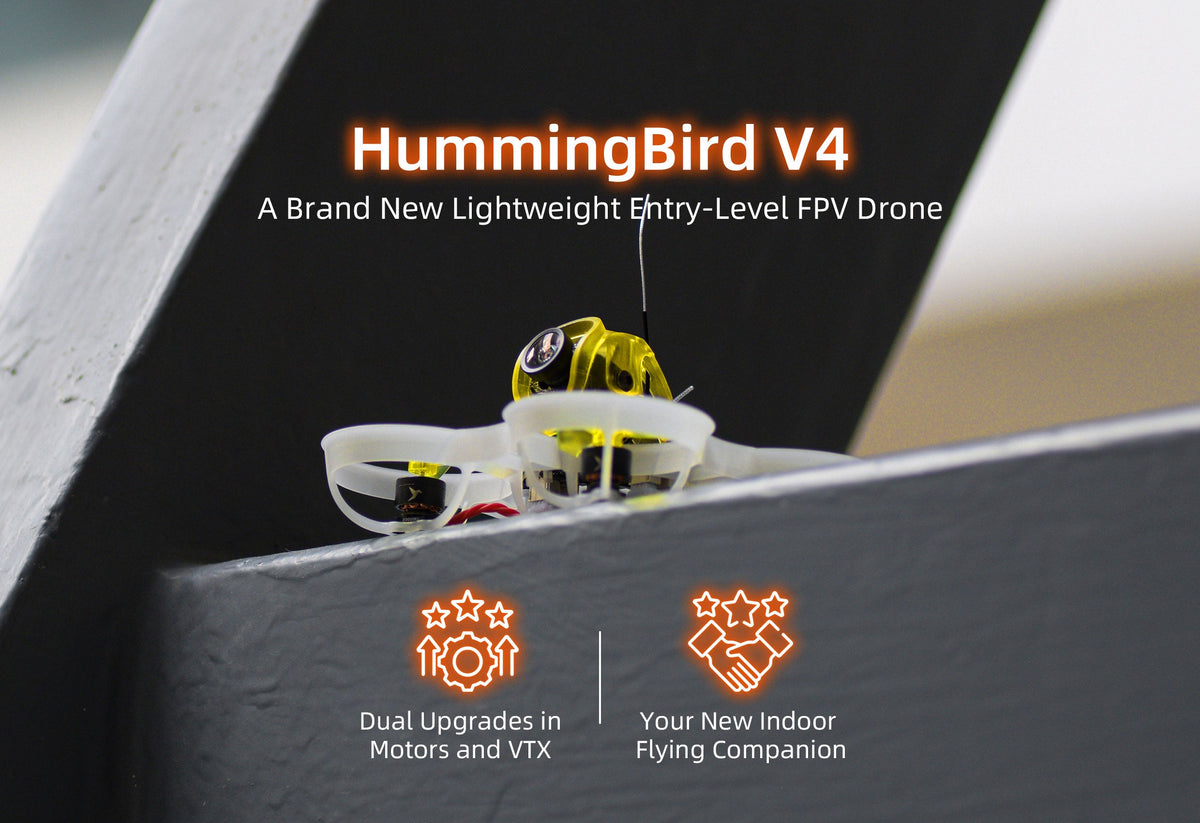

NewBeeDrone HummingBird V4 BNF 30000KV穿越機65mm競速無人機
這是 NewBeeDrone 的FPV 穿越機配件，商品名稱、型號與可確認規格如下。為避免把不同年份或不同版本的參數混用，本頁文字僅整理目前商品標題、選項與既有資料中可核對的資訊；詳細尺寸、接線及安裝示意請一併參閱下方原有說明。
商品重點
- 商品識別：NewBeeDrone HummingBird V4 BNF 30000KV穿越機65mm競速無人機
- 品牌：NewBeeDrone
- 商品類型：無人機／套機
選購與安裝確認
- 請依標題、商品選項及圖片確認型號、尺寸與相容性。
- 安裝、接線或設定前請先斷電，並依原廠說明操作。
- 同系列產品可能因年份、批次或版本而不同，下單前請核對實機。
包裝與出貨說明
本商品依您選擇的規格出貨；若商品名稱、選項或圖片標示數量，出貨內容以該規格為準。商品圖可能同時展示安裝效果或其他搭配零件，未列於所選規格者不包含。若無法確認版本，請在下單前提供實機型號或照片由我們協助核對。
既有詳細資訊與原廠資料
Specifications:
Drone Size: 65mm
Flight Controller: Hummingbird V4 with SmartMax 400mw VTX ELRS2.4G AIO Flight Controller
Available Soon
Frame: Cockroach V3 65mm Brushless Ultra Light Frame
Motors: Hummingbird 0702 Motor 30000KV Available Soon
Propellers: Azi Tri-Blade 31mm Propeller Random Color
Camera: BeeEye Camera
Canopy: Goober Canopy v2 Random Color with Camera 3DPrinted adapter
Total Weight of the Drone without battery:
-19.5g (PP Material Cockroach65 v3 frame)
Hummingbird V4 ELRS AIO Flight Controller Specs:
MCU: STM32F411
GYRO：BMI270
VTX: 25mw for Racing/ 100mw and up to 400mw SmartMax temperature control with BeeTX 5.8Ghz Antenna
ESC: 12A BLHeliS pre-flashed with Bluejay 0.19.2 Target: O-H-10 48kHz
ESC Connector: JST-1.0 3Pin
OSD: NBD7456 Graphical OSD compatible with Betaflight OSD
Receiver: 2.4G Antenna with MHF3 connector
Flight Controller Weight: 4.57g(Include antennas and battery connector)
Flight Controller Size: Outer dimensions: 29x29x7.6mm
Flight Controller Holes: 25.5x25.5mm
Battery input: 1S Only
Uart1: free
Uart2: free
Power Plug: NewBeeDrone NX69 Connector
SPI ELRS3.x receiver (Binding instruction: power on the drone, push the bind button under the flight controller to get into bind mode. If your remote control is not ELRS3.x or above version. You will need to update your remote controller ELRS to 3.x version because betaflight 4.5 will no longer support any lower version of 3.0)
Please read through the SPI base information if you have difficulty with binding
Recommended Batteries:
NitroNectar 300mAh 1S NX69 HV
Firmware:
1. Hummingbird V4 Betaflight firmware
What’s included:
1x Hummingbird V4 BNF Whoop with SmartMax 400mw VTX ELRS2.4G
（Batteries are not included with the product.）
1x Azi Prop 31mm 1.0 random color. 1set.
Warning:
This drone has been carefully crafted using only newbeedrone parts. It is important to note that any use of non-compatible parts from other brands may result in technical difficulties. Additionally, should you choose to modify the drone, it is crucial that you assume full responsibility for any resulting issues. It is not advisable to proceed with modifications without the necessary knowledge and expertise. We appreciate your understanding and cooperation in ensuring the safe operation of the drone.
If you mess up the setting?
Important Notice: If you experience issues with your drone, do not flash the firmware. Simply perform a factory reset using the configuration tool (e.g., Betaflight Configurator) and then do an accelerometer calibration. For further assistance, please contact our support team.
Binding procedure:
To bind, connect to USB power or a battery source. Push the bind button on the front bottom of the flight controller to trigger the binding mode. Bind it to your radio controller. (Note: The Hummingbird v4 only supports ELRS 3.x or a later version. If your remote controller is ELRS 2.5, you will need to update your ELRS TX Module.)
Video:
Review Video:
Hummingbird V4 Wire Diagram:
