【HDZero】Race V3 VTX 競速數位圖傳
這是 HDZero 的影像傳輸配件，商品名稱、型號與可確認規格如下。為避免把不同年份或不同版本的參數混用，本頁文字僅整理目前商品標題、選項與既有資料中可核對的資訊；詳細尺寸、接線及安裝示意請一併參閱下方原有說明。
商品重點
- 商品識別：【HDZero】Race V3 VTX 競速數位圖傳
- 品牌：HDZero
- 商品類型：遙控器／高頻頭
選購與安裝確認
- 確認頻段、接頭形式、極性及圖傳／接收端相容性。
- 圖傳設備通電前應先接妥天線，避免空載造成損壞。
- 安裝時請避免天線、線材與槳葉或高溫元件接觸。
包裝與出貨說明
本商品依您選擇的規格出貨；若商品名稱、選項或圖片標示數量，出貨內容以該規格為準。商品圖可能同時展示安裝效果或其他搭配零件，未列於所選規格者不包含。若無法確認版本，請在下單前提供實機型號或照片由我們協助核對。
既有詳細資訊與原廠資料
About this product

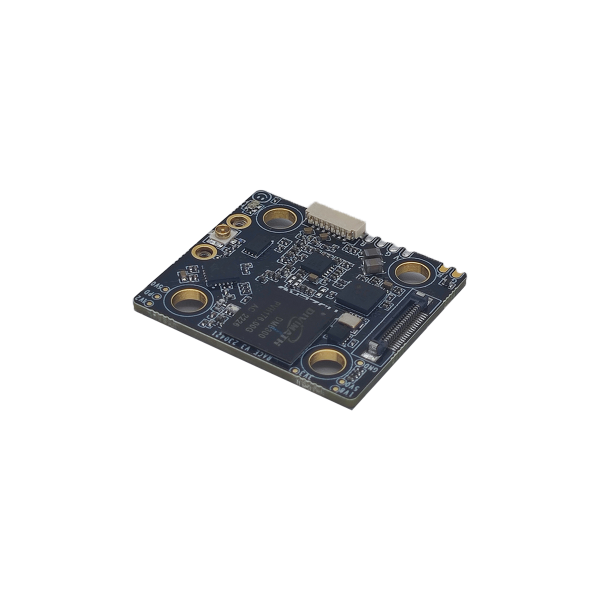

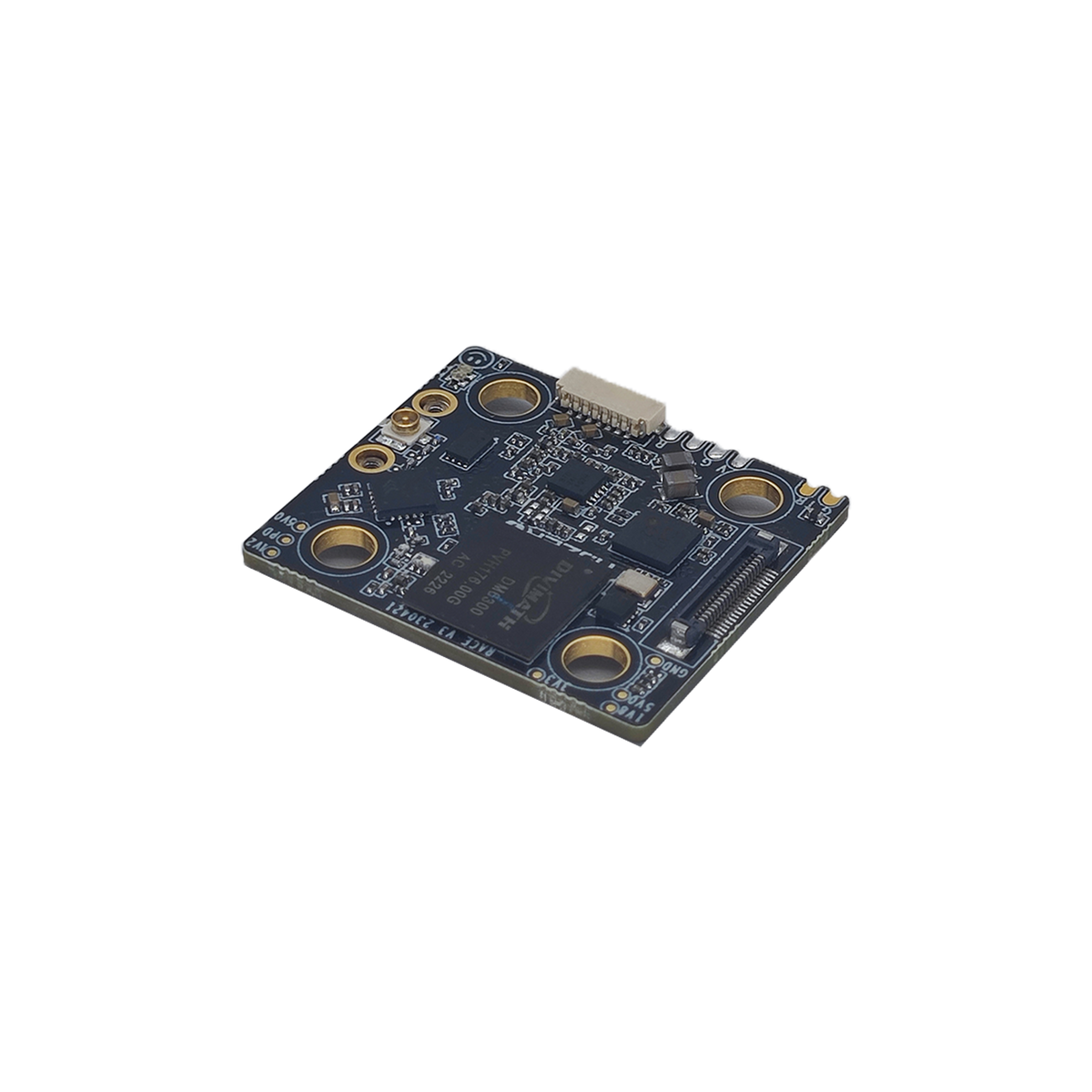

Designed for FPV racing, the HDZero Race V3 VTX is a 3rd generation digital video transmitter. With a voltage range starting at 4V, it can be powered by the 5V 1.5A regulator of most FCs or up to 12V for FCs that include an HD VTX plug. It is small (28x32x5mm) and light (5.5 grams). With a width of only 28mm, the VTX is now a similar width to many FCs, which improves durability and reduces weight. The antenna is securely attached with a metal bar and screws. No soldering is needed – just plug the wire harness into a compatible HD-ready FC.
The HDZero Race V3 VTX is also designed with durability in mind, rather than weight. This VTX is made with a 1.6mm thick PCB, in comparison to the 1.0mm PCB used in the Whoop lite VTX. Moreover, it uses more large package size components for stability consideration. For the smaller components, an additional glue coating is applied to increase crash protection. The HDZero Race V3 VTX offers high-quality video in 540p90, 720p60, and 1080p30 resolutions with 25/200mW switchable power on 5.8GHz.
Features
- Easy installation without soldering, just plug the wire harness into a compatible HD-ready FC
- High-quality video in multiple resolutions: 540p90, 720p60, and 1080p30
- Improved durability and reduced weight with a width similar to many FCs
- Additional glue coating for crash protection of smaller components
- Secure attachment of antenna with a metal bar and screws
- Switchable power options: 25mW and 200mW
- Small and lightweight: 28x32x5mm, 5.5 grams
- Large package size components for stability
- Durable design with a 1.6mm thick PCB
- Operates on a 5.8GHz frequency band
- 3rd generation digital video transmitter
- Wide voltage range: 4V to 12V
- Designed for FPV racing
Specifications
- Mounting Pattern: 20x20mm with M4 to M3 gummies
- Power Consumption: 25mW: 5.0W – 200mW: 5.8W
- Operating Frequency: 5.725-5.850GHz
- Transmitter Power: 25mW,200mW
- Antenna Interface: Secured u.FL
- Dimensions: 32x28x5mm
- Power input: BEC 4-12V
- Harness length: 40mm
- Weight: 5.5 grams
