銀角低利率分期可申請 6／12／18／24 期。下單前請先傳訊息至酷飛官方 LINE（@729jvyax）確認有無現貨，避免等候過久。本賣場不提供免運；可使用 7-ELEVEN／全家店到店，請提供門市資料；黑貓宅急便請先洽官方 LINE 確認配送與運費。 【HDZero】AIO15 2S／3S 數位一體式飛控系統 這是 HDZero 的飛控與電子零組件，商品名稱、型號與可確認規格如下。為避免把不同年份或不同版本的參數混用，本頁文字僅整理目前商品標題、選項與既有資料中可核對的資訊；詳細尺寸、接線及安裝示意請一併參閱下方原有說明。 商品重點 商品識別：【HDZero】AIO15 2S／3S 數位一體式飛控系統 品牌：HDZero 商品類型：飛控／電調 選購與安裝確認 確認輸入電壓、電流容量、安裝
低利率分期與下單前確認
想降低一次付清的壓力，可選擇銀角低利率分期 6／12／18／24 期；實際申請資格、利率、總費用與核准結果以銀角平台審核及訂單顯示為準。
- 下單前請先傳訊息至酷飛官方 LINE（ID：@729jvyax）確認有無現貨，確認後再下單，可避免預購或調貨等待時間過長。
- 本賣場不提供免運服務，運費依配送方式另計。
- 可使用 7-ELEVEN 或全家店到店；請透過官方 LINE 提供超商名稱、門市名稱、店號、收件人姓名與電話。
- 如需黑貓宅急便，請先透過官方 LINE 確認配送方式與運費後再下單。
加入酷飛官方 LINE｜@729jvyax
【HDZero】AIO15 2S／3S 數位一體式飛控系統
這是 HDZero 的飛控與電子零組件，商品名稱、型號與可確認規格如下。為避免把不同年份或不同版本的參數混用，本頁文字僅整理目前商品標題、選項與既有資料中可核對的資訊；詳細尺寸、接線及安裝示意請一併參閱下方原有說明。
商品重點
- 商品識別：【HDZero】AIO15 2S／3S 數位一體式飛控系統
- 品牌：HDZero
- 商品類型：飛控／電調
選購與安裝確認
- 確認輸入電壓、電流容量、安裝孔距、接頭與韌體目標。
- 安裝及焊接前請斷電，完成後先檢查短路與極性。
- 首次上電建議使用限流保護並先拆除槳葉。
包裝與出貨說明
本商品依您選擇的規格出貨；若商品名稱、選項或圖片標示數量，出貨內容以該規格為準。商品圖可能同時展示安裝效果或其他搭配零件，未列於所選規格者不包含。若無法確認版本，請在下單前提供實機型號或照片由我們協助核對。
既有詳細資訊與原廠資料
下單前請先聯繫我們確認有無現貨。

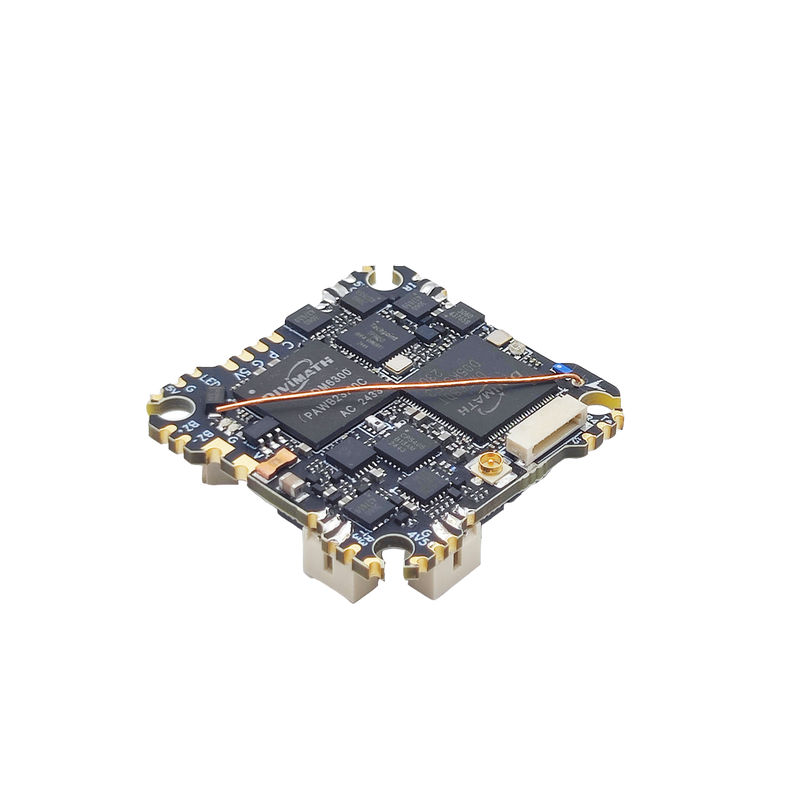

The HDZero AIO15 is the world’s first all-in-one (AIO) digital FPV flight system designed specifically for 2S–3S tiny whoops and micro freestyle builds. It combines everything you need—flight controller, digital video transmitter, ESC, receiver, and BEC - into a compact, ultra-lightweight 31.3x31.3mm board.
With an integrated 15A 4-in-1 ESC, the AIO15 supports higher-current motors and 2 - 3S batteries, enabling powerful sub-33.4g builds without compromising video quality or responsiveness. Whether you're building your own freestyle whoop or flying a ready-to-go platform like the M8 Freestyle HD, AIO15 delivers the performance micro pilots have been waiting for.
Designed in Response to Pilot Feedback
Pilots loved the convenience and weight of the HDZero AIO5, but wanted more power and voltage flexibility. The AIO5 was limited to:
The AIO15 solves this with:
- 15A ESCs (18A peak)
- 2S-3S battery support
Now you can fly harder, faster, and longer with the digital clarity and ultra-low latency HDZero is known for.
Notes
AIO15 inputs HD composite video via a single wire instead of a MIPI cable, compatible with LUX/Eco Camera.
Key Features
- Integrated HDZero 5.8GHz Digital VTX
- Output Power: 25mW / 200mW
- Channels: R1- R8, F2/F4, L1 - L8
- U.FL connector with included ultra-light linear antenna
- Built-in Serial ExpressLRS 2.4GHz Receiver
- Packet rates: 50 - 1000Hz (50/100/150/250/333/500/D250/D500/F500/F1000Hz)
- Pre-soldered enamel wire antenna
- Flight Controller
- MCU: STM32G473 @170MHz, 512K Flash
- Gyro: ICM42688
- Onboard voltage and current sensing
- Firmware target: HDZERO_AIO15
- 4-in-1 15A ESC
- MCU: EFM8BB21
- Current: 15Ax4 continuous, 18Ax4 peak (3s)
- BlueJay firmware (Z_H_30_48_v0.19.2)
- DShot600 ready
- 5V BEC
- 5V @ 1A output for accessories and camera
Specifications
- Battery Input: 2S–3S (3.5V–13V)
- Mounting: 25.5x25.5mm M2
- Board Dimensions: 31.3x31.3mm
- Weight: 7.2g (with motor plugs)
- Compatibility: Fits popular whoop frames
Applications
Perfect for:
- 80mm freestyle whoops
- Lightweight micro drones
- Pilots seeking minimal weight with maximum performance
- Builders upgrading from the AIO5
Included
- 1x HDZero AIO15 board
- 1x Power cable with xt30 connector
- 4x screws
- 4x rubber grommets
- 1x ultra-lite linear VTX antenna
- 1x Adapter board
- 1x Adapter cable
