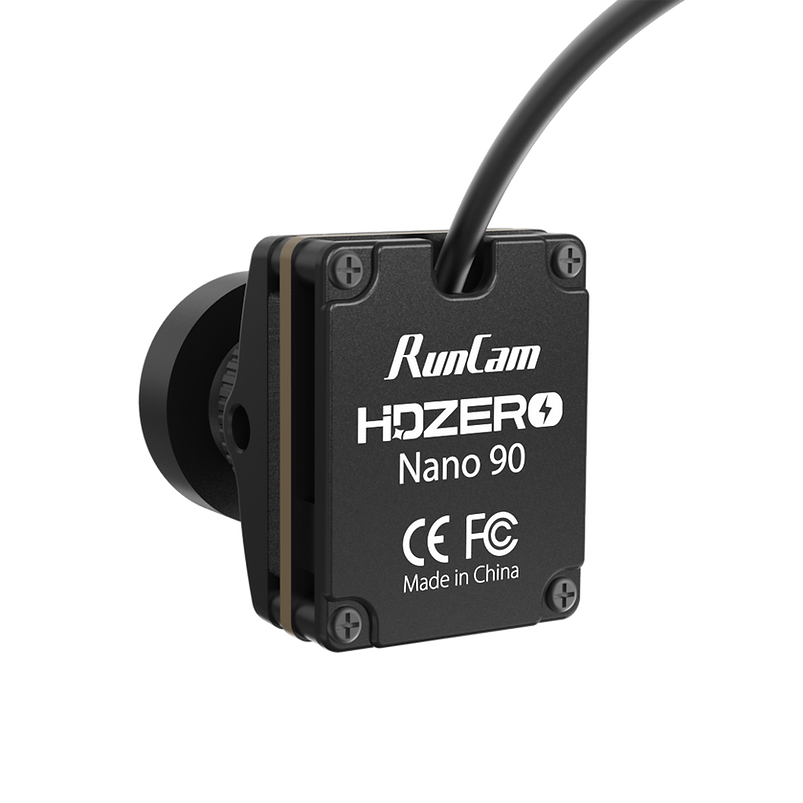

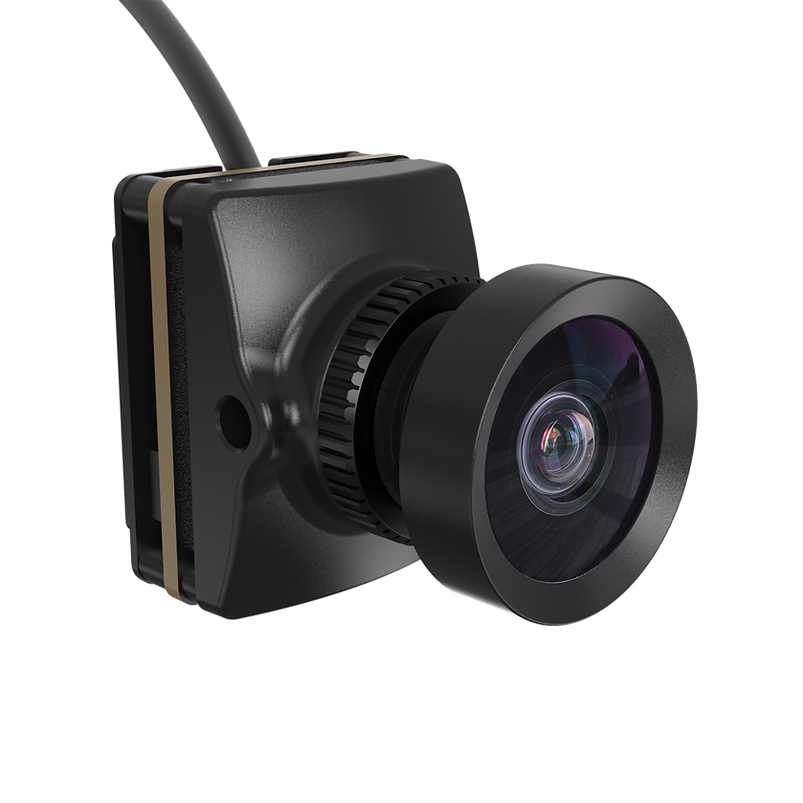

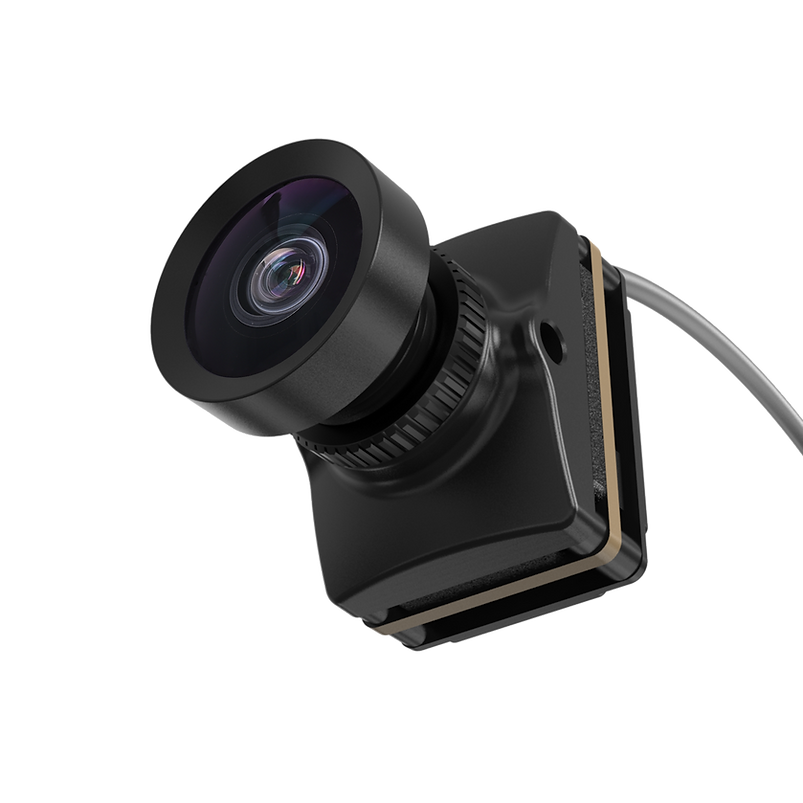

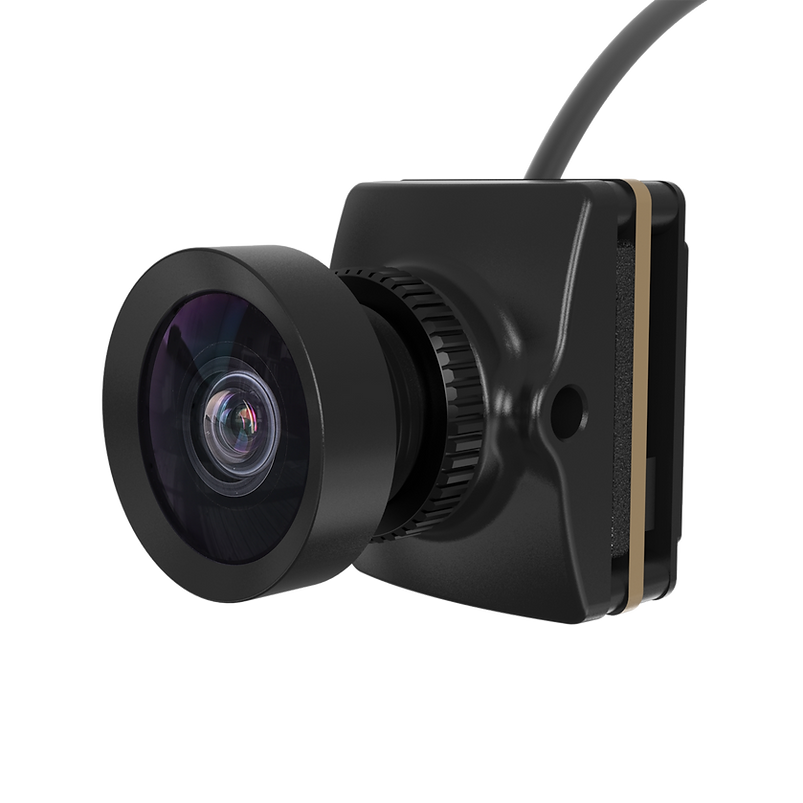

Runcam HDZero Nano 90 camera is the first 90fps camera for HDZero VTX. This camera enables HDZero to be 5ms faster than analog 60i video to show a full field/frame.

Combined with HDZero’s extremely low latency, 90 FPS gives racers and freestyle pilots an unmatched connected flying feel and a competitive edge on the race track. You’ll finish snap rolls sharper, and corner around gates tighter at 90 FPS.

Freestylers will appreciate the new 540p60 60 FPS mode that offers better signal penetration and range by reducing HDZero’s video bandwidth.

It supports various resolutions for different flying environments

• 720x540p90 – 90 FPS – requires HDZero Goggle
• 720x540p60 – 60 FPS at lower resolution gives better penetration/range
• 960x720p60 – 60 FPS at standard 720p resolution

Nano 90 is able to reach to 3ms pixel latency and 14ms frame latency glass to glass with the HDZero goggle.

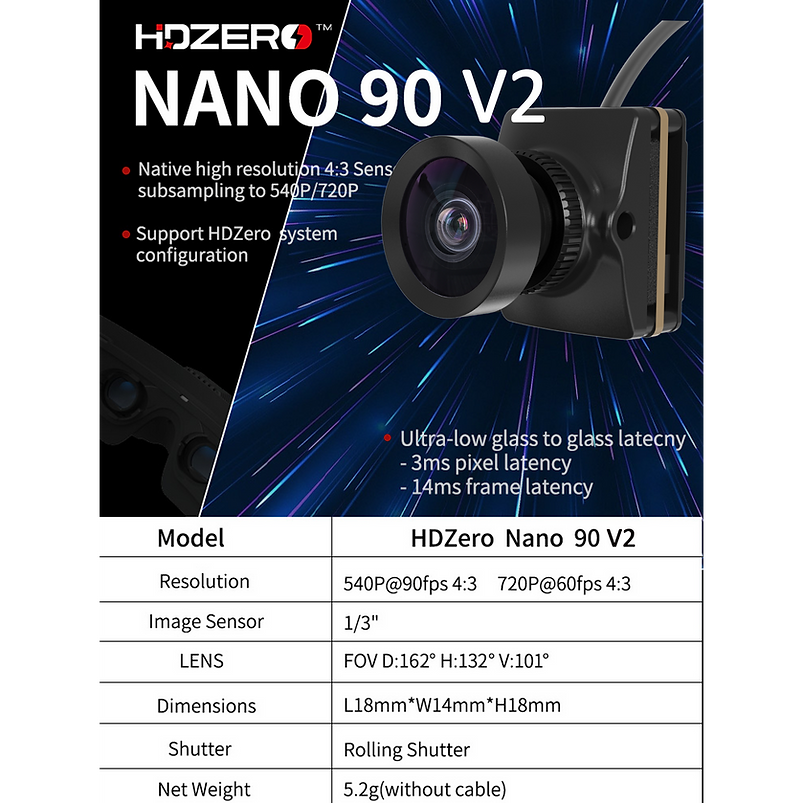

Nano 90 V2 changed the lens to RC18D (HDZ3301)
- Nano 90
FOV  D:160 H:127 V:92
- Nano 90 V2
FOV  D:162 H:132 V:101

* 80mm MIPI cable included.

Runcam HDZero Nano 90 攝影機是首款支援 90fps 的 HDZero VTX 攝影機。這款攝影機讓 HDZero 能夠比類比 60i 影片快5 毫秒顯示完整畫面/畫面。

HDZero 的超低延遲與 90 FPS 相結合，為競速玩家和特技飛行員帶來無與倫比的流暢飛行體驗，並在賽道上助您一臂之力。 90 FPS 讓您更精準地完成翻滾，更精準地繞過障礙門。

自由式滑雪愛好者會喜歡新的 540p60 60 FPS 模式，該模式透過降低 HDZero 的視訊頻寬，提供更好的訊號穿透力和範圍。

它支援適用於不同飛行環境的各種解析度。

• 720x540p90 – 90幀/秒 – 需要HDZero眼鏡
• 720x540p60 – 較低解析度下 60 FPS 可提供更好的穿透力/射程。
• 960x720p60 – 標準 720p 解析度下 60 幀/秒

Nano 90 與 HDZero 眼鏡搭配使用時，可實現 3ms 像素延遲和 14ms 幀延遲（玻璃對玻璃）。


Nano 90 V2 將鏡頭更換為 RC18D (HDZ3301)
- Nano 90
視野角：D:160 H:127 V:92
- Nano 90 V2
視野角：D:162 H:132 V:101

* 附贈 80mm MIPI 連線線。
