HDZero Goggle 2 builds on the success of the original with practical upgrades pilots will appreciate: a sharper, dust-resistant optic module, built-in analog receiver, integrated WiFi for wireless mirroring, and a protective hard case. It keeps everything that made the original great—ultra-low latency, open-source flexibility, and all-in-one digital + analog support—while adding more value and convenience for everyday flying.

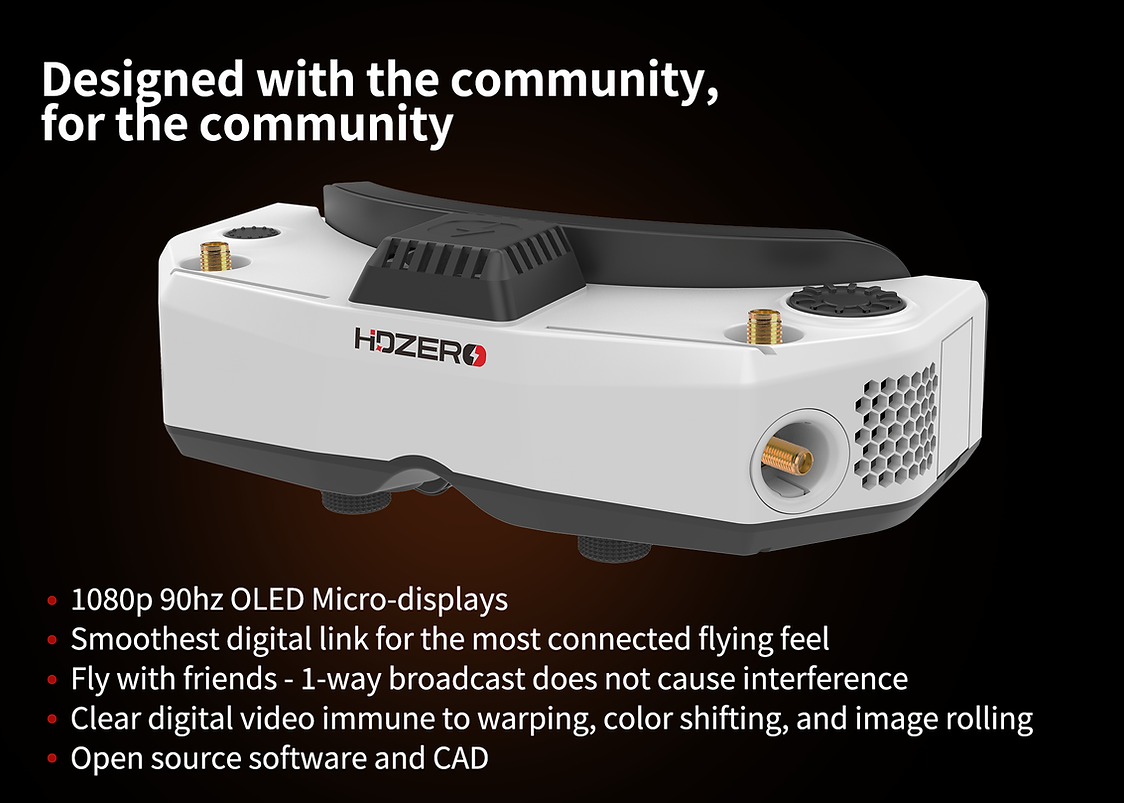

• HDZero Goggle was designed with the FPV community for the FPV community. We asked what you wanted, and we delivered:
• Open-source goggle software and CAD files, so you can customize it to your preferences
• Clear digital video immune to warping, color shifting, and image rolling
• 1080p 90hz adaptive refresh rate OLED micro-displays
• Resolutions for different flying types: 1080p30, 720p60, 540p90, and 540p60
• Smoothest and fastest link for the most connected flying feel (3ms glass-to-glass)
• Fly with friends – 1-way broadcast doesn’t interfere with nearby pilots
• Improved analog video resolution with real-time deinterlacer
• Built-in analog receiver sharing antenna with HDZero receiver

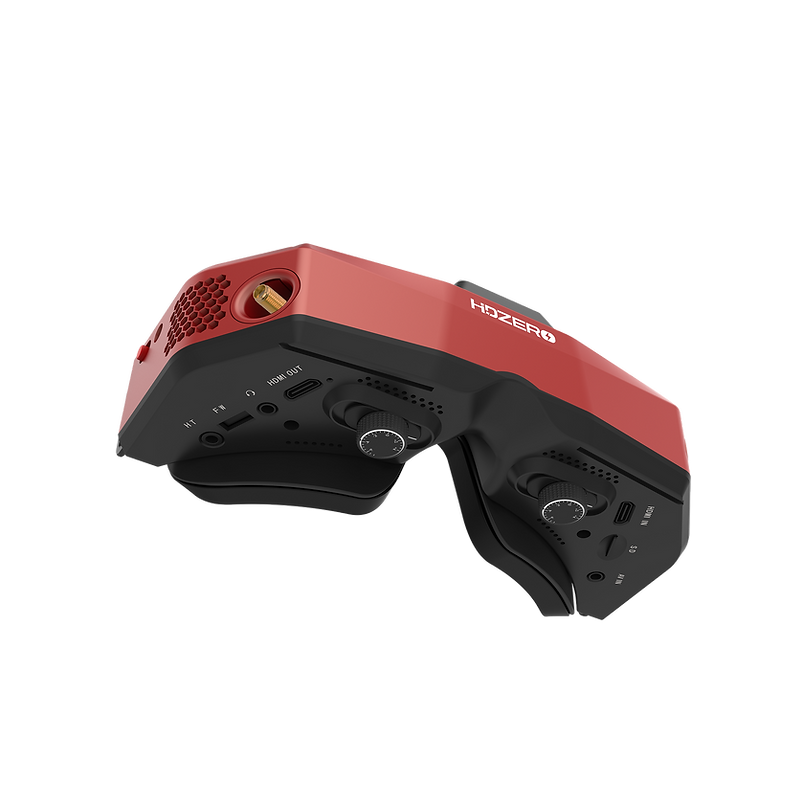

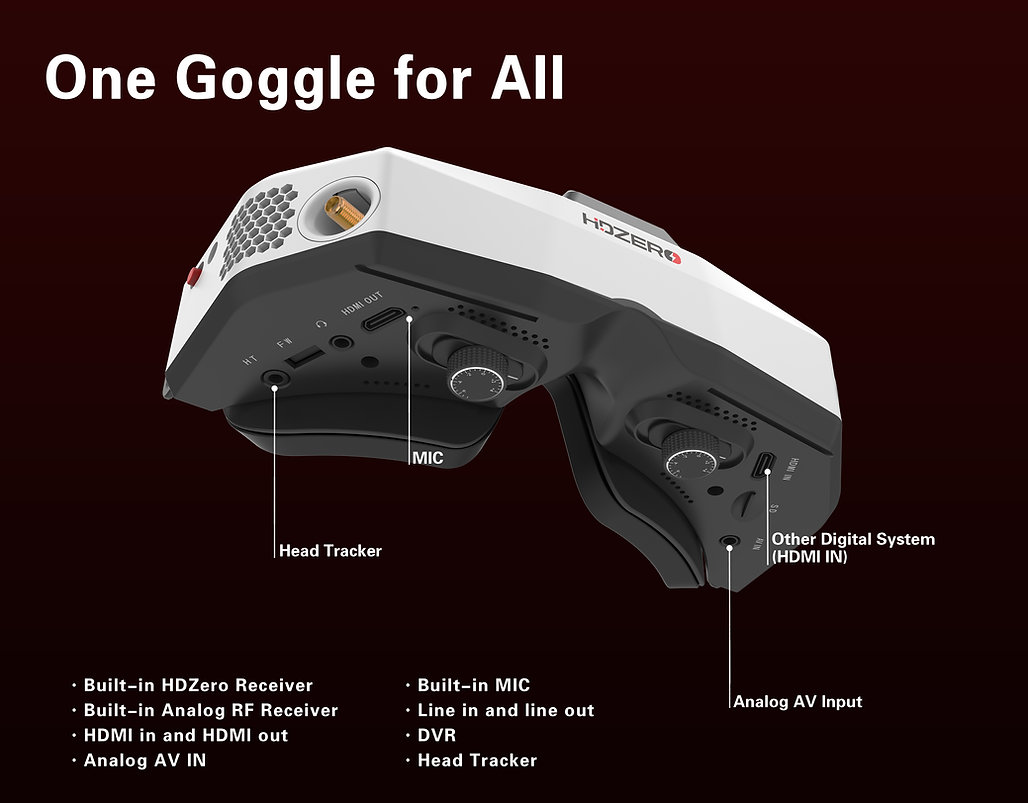

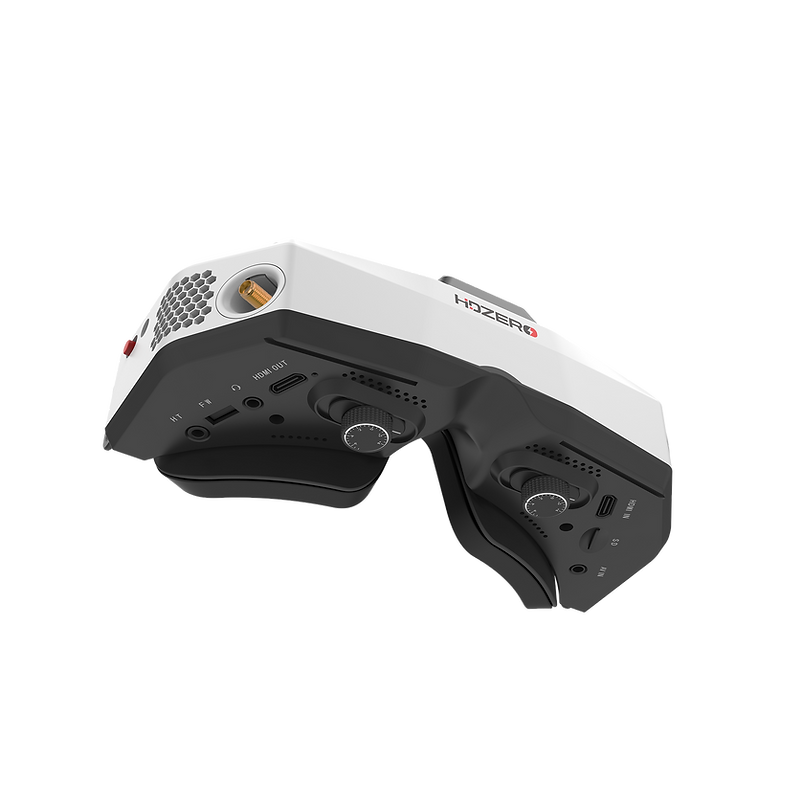

• All the video input and output you need – one goggle for digital, analog, and HDMI video
  • Analog 3.5mm AV input
  • HDMI input and output
  • Headphone/microphone combo jack
• Add-on analog module bay that accepts most of today’s analog modules
• Mount antennas to innovative rail mount system

Features:

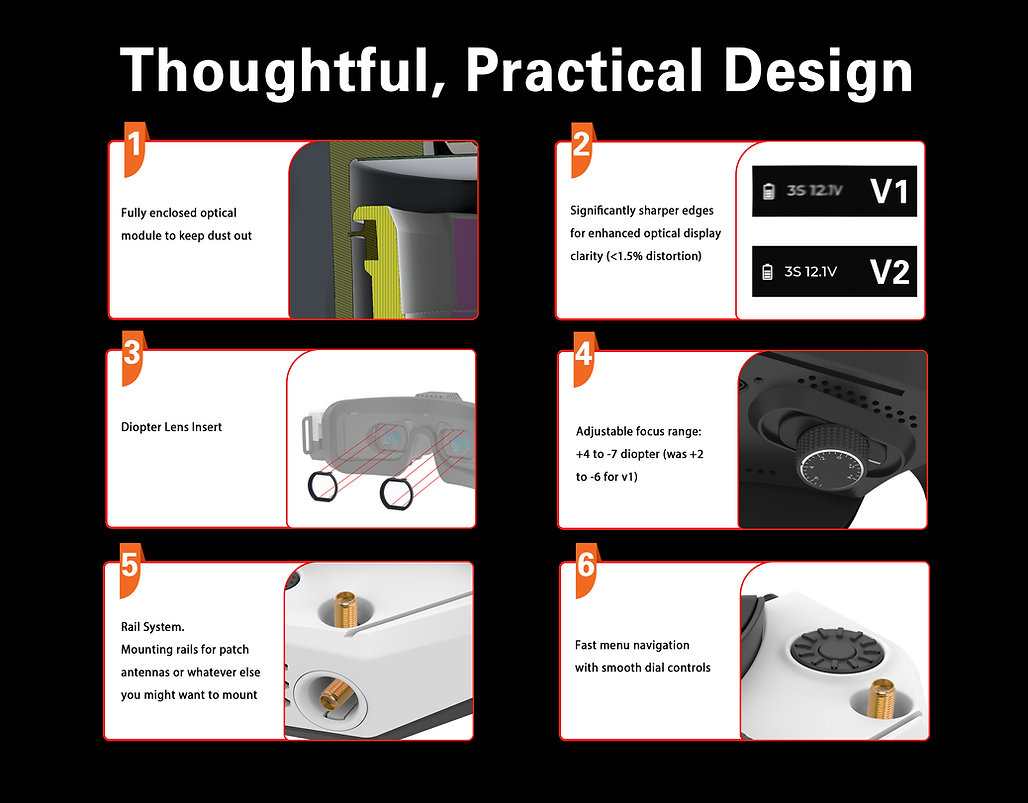

• Fully enclosed optical module to keep dust out
• Significantly sharper edges for enhanced optical display clarity (<1.5% distortion)
• Greatly enhanced analog reception performance, ensuring improved handling of weak signals

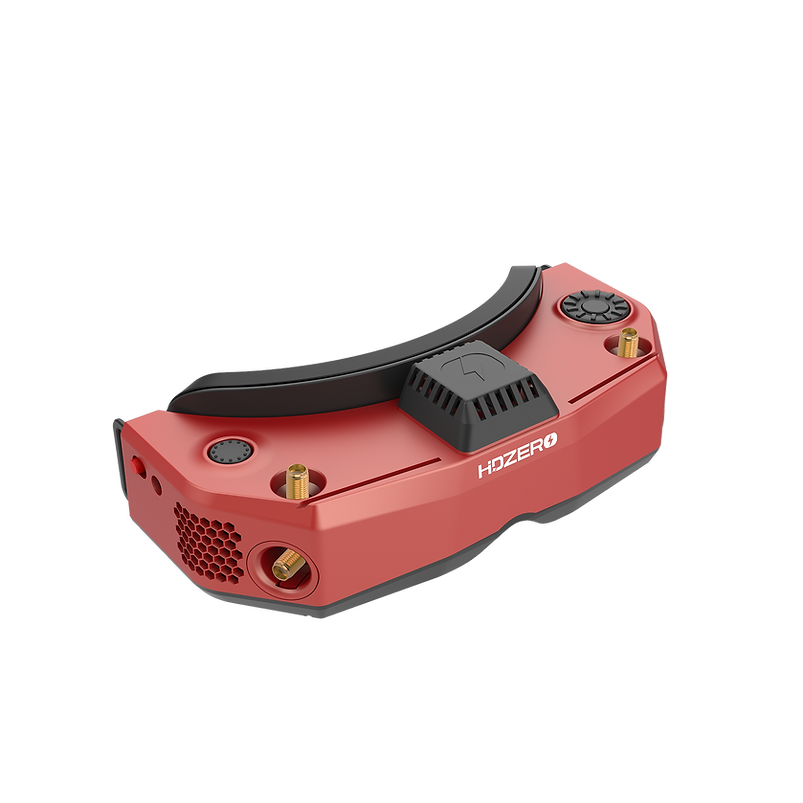

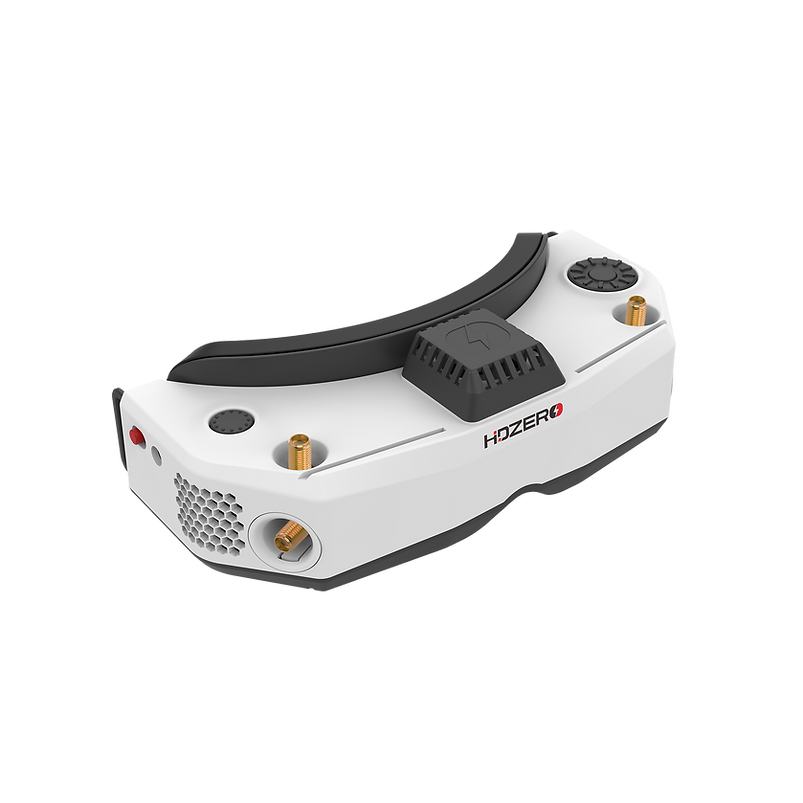

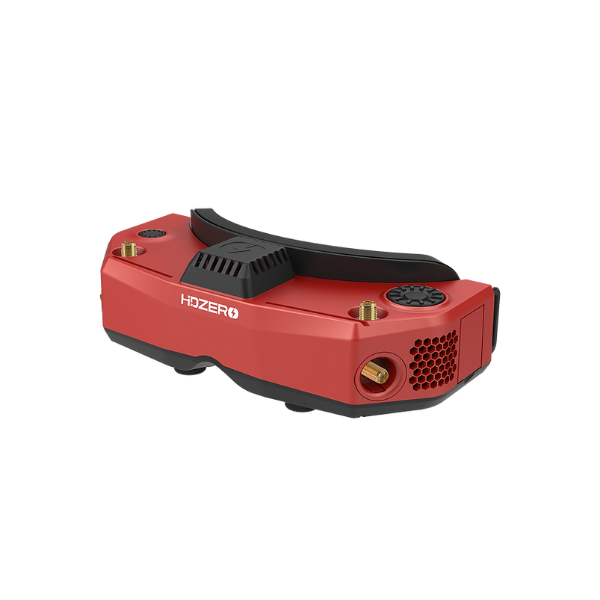

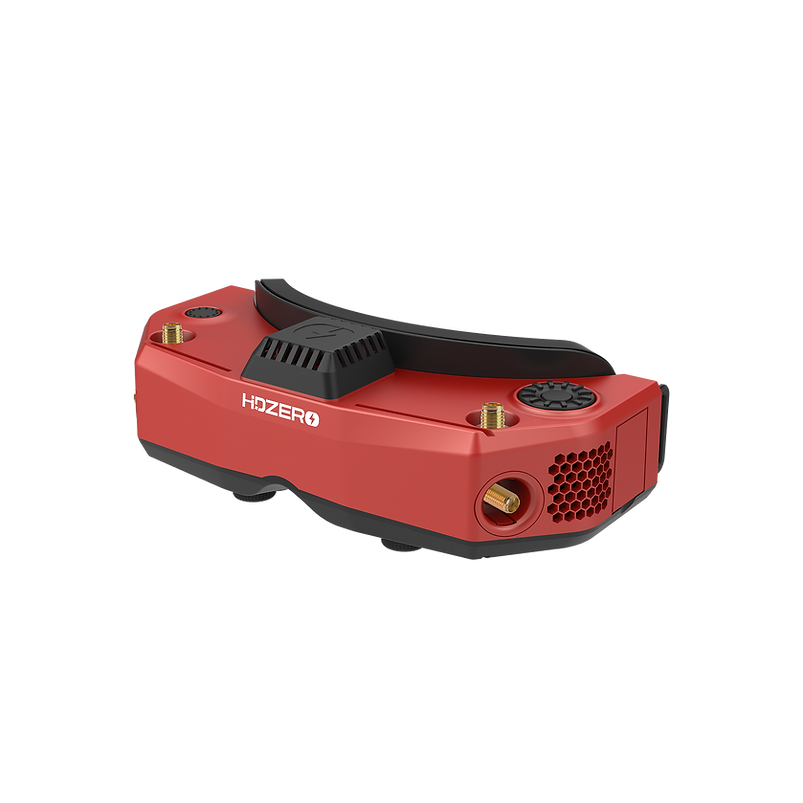

• Available in two shell colors—White and Red—to suit individual preferences
• On/off sliding switch – be confident that the goggle is on or off at a glance or by feel
• Designed for open source, the goggle runs Linux. All code for the user interface is open source
• Support diopter lens inserts

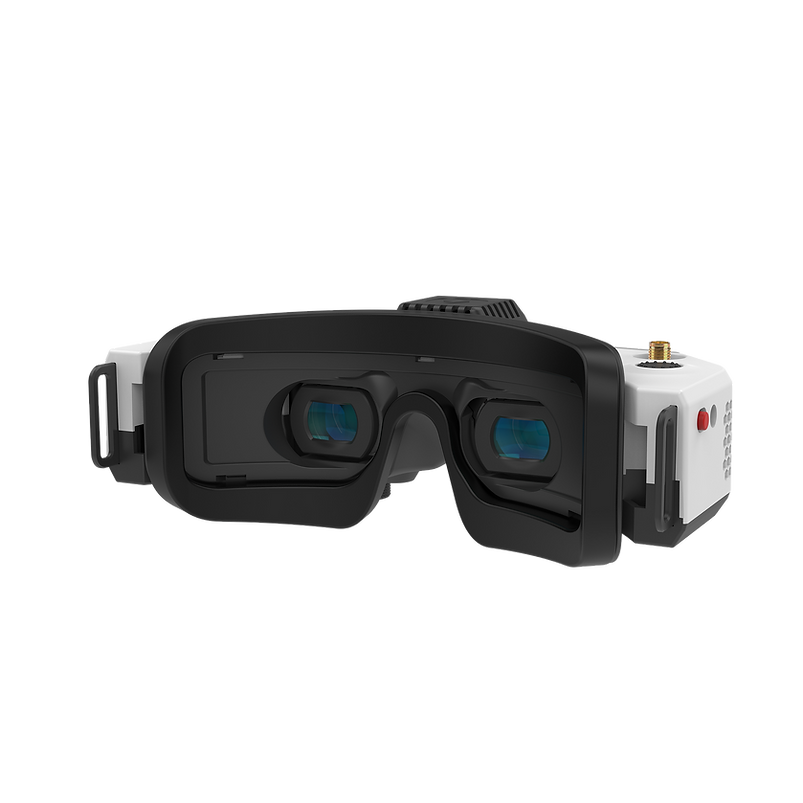

• 90Hz 1080p OLED screens with sliding IPD adjustment and dials for focus adjustment
• By integrating the entire goggle display pipeline with HDZero’s fixed-latency video transmission, these goggles achieve 3ms glass-to-glass sub-frame latency with no jitter or dropped frames
• Mounting rails for patch antennas or whatever else you might want to mount
• Recessed front SMA jacks so no need to remove antennas when packing the goggle away
• Three independently addressable fans work in combination to cool the internals and prevent fogging. They are soft mounted to prevent screen vibration and noise
• HDMI input and HDMI output
• Built-in microphone for DVR
• 3.5mm combination headphone / microphone jack for audio and external mic
• 3.5mm analog video/audio input for use with ground station inputs
• Integrated 2D deinterlacer that adds no delay for analog input
• Built-in ELRS backpack support
• Built-in H.265 DVR for HDMI in/Analog/HDZero input
• Built-in analog receiver
• Built-in 2.4Ghz WiFi video streaming module for live streaming
• 6-axis smart inertial measurement for head tracking pan+tilt support
• Add-on side-mounted analog module bay that accepts most of today’s analog modules

Specification:

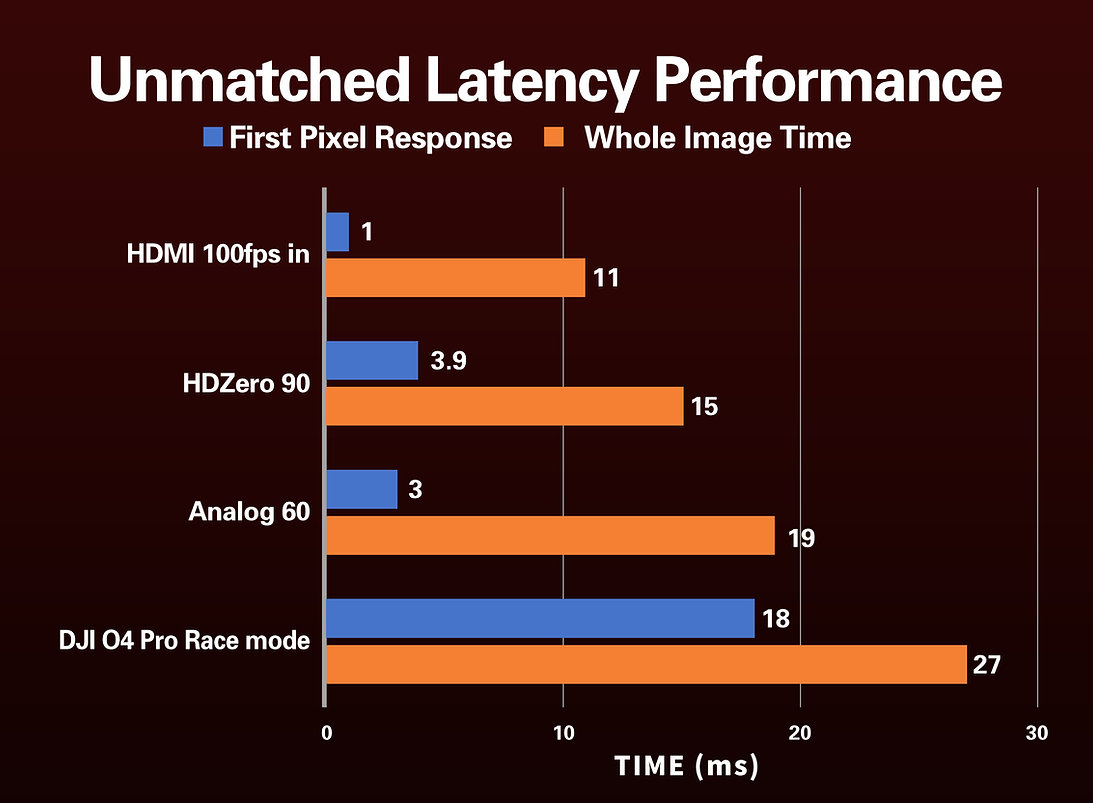

• HDMI input latency: <1ms
• Analog Camera glass-to-goggle glass latency: <2ms
• HDZero Camera glass-to-goggle glass latency: <3ms
• Adjust IPD range: 58-72mm (57-70mm for v1)
• Adjustable focus range: +4 to -7 diopter (was +2 to -6 for v1)
• Full HD 1920x1080p 90fps OLED micro display
• FOV: 46deg
• Input voltage: 7V-25.2V (2S-6S)

Includes:

• 1x HDZero Goggle 2
• 1x Wide face plate
• 1x Narrow face plate
• 1x Foam padding
• 1x Goggle Strap
• 1x 1200mm XT60 cable
• 1x 150mm HDZero VTX programing cable
• 1x Hard case travel box
• 1x Lens cloth

Why HDZero Goggle 2 Costs More — And Why It’s Worth It

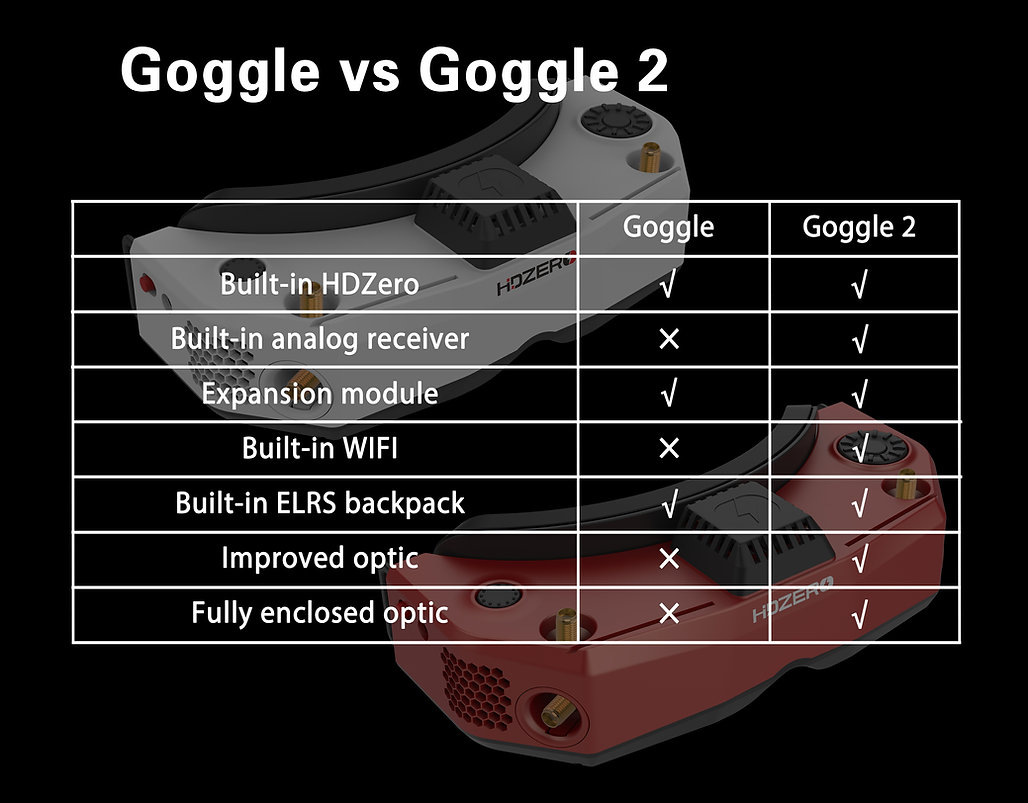

HDZero Goggle 2 adds meaningful upgrades that enhance performance, durability, and convenience:

• Improved Optic Module – Now dust-resistant and redesigned for greater image clarity. This upgrade involves injection model tooling modifications and raises production costs, yet it results in a sharper, more refined viewing experience.
• Built-in High-Sensitivity Analog Receiver – No need to buy a $50 analog expansion bay or a separate analog receiver (often $80-160+).

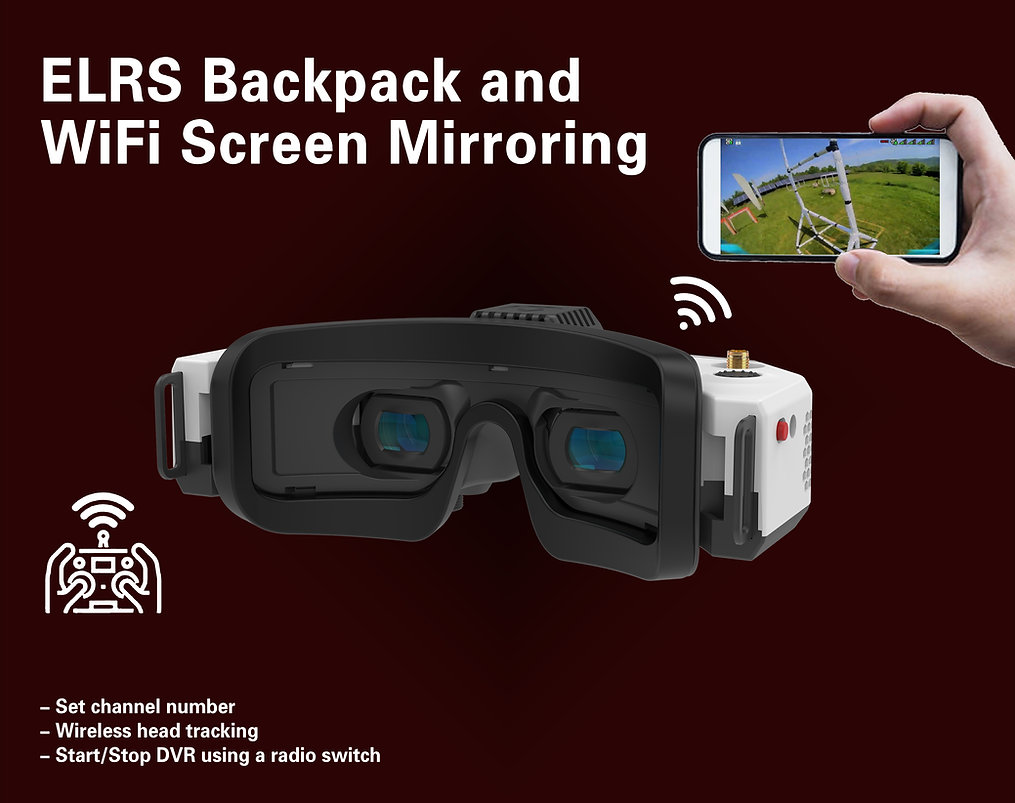

• Integrated WiFi Mirroring – Effortlessly mirror your FPV feed to a phone or PC with no extra gear.
• Included Hard Shell Case – A $20 value included to protect your investment in transit and storage.

Together, these upgrades offer more than $150 in added value, while the new optic module significantly improves your day-to-day flying experience. The price increase reflects both the added features and the higher manufacturing cost — and we believe it’s a solid upgrade for any pilot.

HDZero Goggle 2在初代產品成功的基礎上進行了多項實用升級，飛行員們一定會喜歡：更清晰、防塵的光學模組、內置模擬接收器、用於無線鏡像的集成 Wi-Fi 以及堅固的保護盒。它保留了初代產品的所有優點——超低延遲、開源靈活性以及數位+類比一體化支援——同時為日常飛行增添了更多價值和便利性。

• HDZero Goggle 是與 FPV 社群共同設計，專為 FPV 社群打造的。我們徵求了你們的需求，並且竭力滿足：
• 開源護目鏡軟體和CAD文件，方便您依照自己的喜好進行客製化。
• 清晰的數位視頻，不受畫面扭曲、色彩偏移和影像滾動的影響。
• 1080p 90Hz 自適應更新率 OLED 微型顯示器
• 不同飛行類型的解析度：1080p30、720p60、540p90 和 540p60
• 最流暢、最快的連接，帶來最流暢的飛行體驗（3毫秒玻璃到玻璃傳輸）
• 與朋友一起飛行－單向廣播不會幹擾附近的飛行員
• 即時反交錯器提高了類比視訊分辨率
• 內建類比接收器與HDZero接收器共用天線
• 滿足您所有視訊輸入輸出需求—一副眼鏡即可支援數位、類比和HDMI視訊。
  • 模擬 3.5 毫米 AV 輸入
  • HDMI輸入和輸出
  • 耳機/麥克風組合插孔
• 可擴充的類比模組插槽，可相容於當今大多數類比模組。
• 將天線安裝到創新的導軌安裝系統上

特徵：

• 全封閉式光學模組，防止灰塵進入。
• 邊緣更加銳利，光學顯示清晰度更高（失真度<1.5%）
• 大幅提升類比接收性能，確保更好地處理弱訊號
• 提供白色和紅色兩種外殼顏色可選，以滿足個人喜好。
• 滑動式開關－只需一眼或憑感覺即可確認護目鏡是否開啟或關閉。
• 這款護目鏡採用開源設計，運行Linux系統。使用者介面的所有程式碼都是開源的。
• 支援屈光度鏡片插入件
• 90Hz 1080p OLED螢幕，帶滑動式瞳距調整和對焦調整旋鈕
• 透過將整個護目鏡顯示流程與 HDZero 的固定延遲視訊傳輸技術集成，這些護目鏡實現了 3 毫秒的玻璃到玻璃子幀延遲，且無抖動或丟幀現象。
• 用於安裝貼片天線或其他任何你想安裝的東西的安裝導軌
• 前置SMA介面採用嵌入式設計，因此收納護目鏡時無需拆卸天線。
• 三個獨立尋址風扇協同工作，為內部組件散熱並防止螢幕起霧。它們採用軟性安裝方式，以防止螢幕振動和噪音。
• HDMI 輸入和 HDMI 輸出
• 內建麥克風，適用於數位錄影機
• 3.5毫米耳機/麥克風組合插孔，用於音訊和外接麥克風
• 3.5mm 類比視訊/音訊輸入，用於連接地面站輸入
• 整合式 2D 隔行掃描消除器，不會增加類比輸入延遲
• 內置ELRS背包支撐
• 內建H.265 DVR，支援HDMI輸入/類比/HDZero輸入
• 內建類比接收器
• 內建2.4GHz WiFi串流模組，用於直播
• 支援頭部追蹤雲台控制的 6 軸智慧慣性測量
• 可加裝的側裝式類比模組擴充槽，相容於目前市面上大多數類比模組。

規格：

• HDMI 輸入延遲：<1毫秒
• 模擬相機鏡片到護目鏡鏡片的延遲：<2毫秒
• HDZero 攝影機玻璃到護目鏡的延遲：<3毫秒
• 調整瞳距範圍：58-72mm（v1 版本為 57-70mm）
• 可調焦距範圍：+4 至 -7 屈光度（v1 版本為 +2 至 -6）
• 全高清 1920x1080p 90fps OLED 微型顯示屏
• 視場角：46度
• 輸入電壓：7V-25.2V（2S-6S）

包括：

• 1顆HDZero護目鏡2
• 1 個寬面板
• 1 個窄面板
• 1塊泡棉墊
• 1條護目鏡帶
• 1條1200mm XT60線纜
• 1條150mm HDZero VTX編程電纜
• 1 個硬式旅行箱
• 1片鏡頭布
