HDZero ECO Bundle is designed to bring digital FPV to more pilots by offering a low cost, light weight, and durable alternative to analog video. The digital video signal has stable color reproduction and 720p progressive scan video with the low latency HDZero is known for.

This budget-friendly Air Unit is a groundbreaking product—it’s the first VTX/camera combination that utilizes a HD composite video signal, eliminating the need for a delicate MIPI cable.

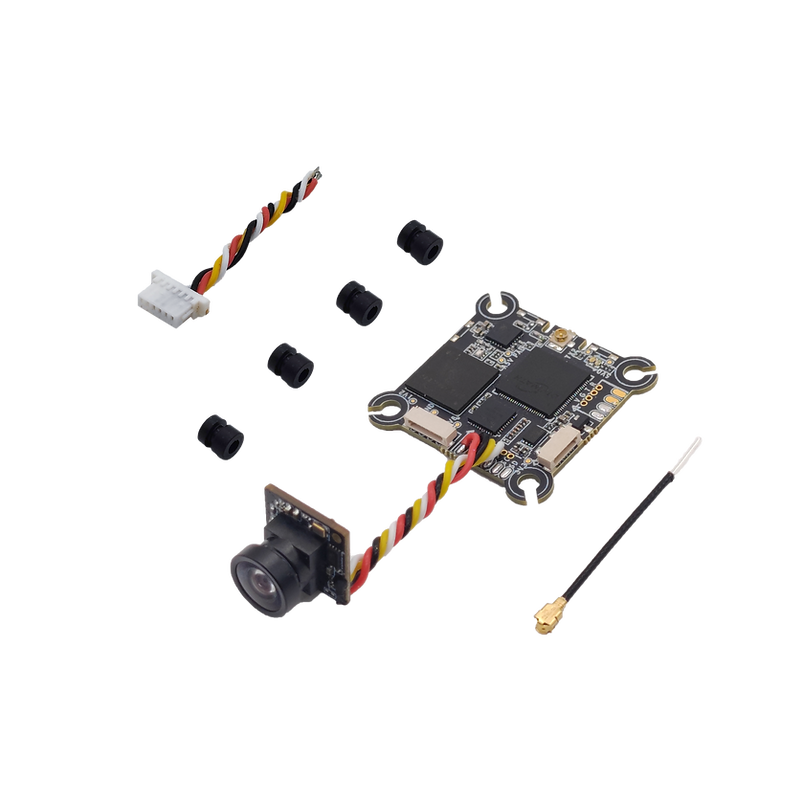

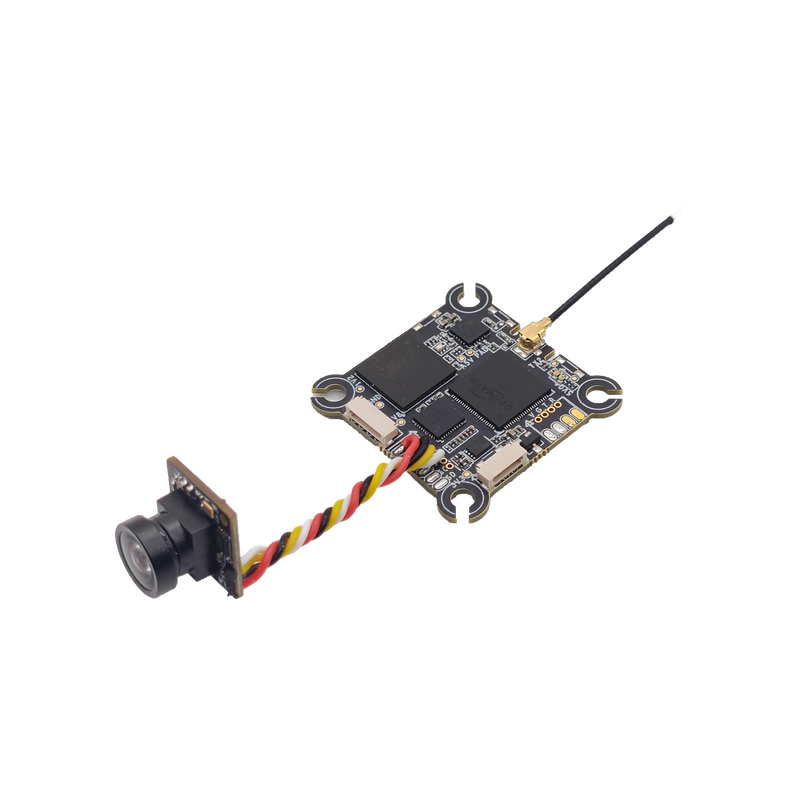

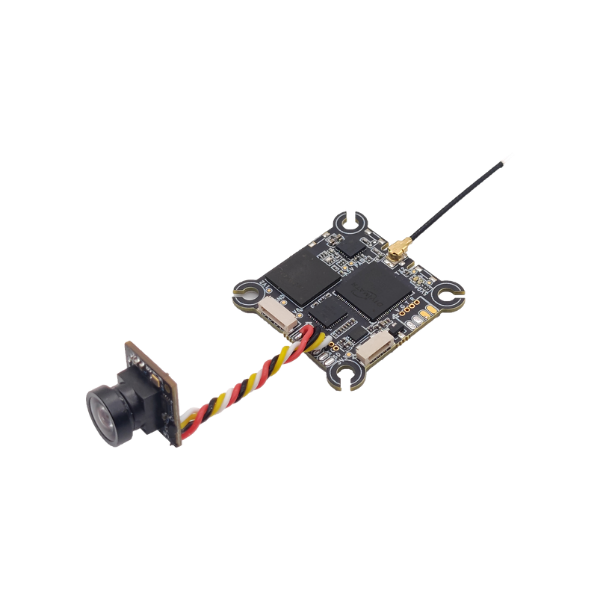

The ECO FPV System was meticulously designed for ultra-lightweight drones like Tiny Whoops, where every fraction of a gram counts. The camera’s huge 98deg vertical FOV is perfect for fast indoor proximity flying. The ECO VTX weighs approximately 4.5g, while the camera (including wires) comes in at about 1.6g. With the included 0.2g dipole antenna, the entire Eco Bundle weighs about mere 6.3g in total.

HDZero Eco VTX Specifications:

- Composite HD Video Interface

- 1S-3S Input

- 25mW/200mW RF Output

- 25 x 25 M2 Soft Mounting

- Antenna Retention

- 4.5grams/4mm Thickness

HDZero Eco Camera Specifications:

- 14mm wide x 16 tall x 13mm thick

- 1.6g weight with cable

- 1/3” CMOS sensor

- FOV: 4:3  D:150° H:120° V:98°

- Suggested Setting

   . Sharpness: 15

   . Saturation: 8

   . R Surp: 8

   . Brightness: 45

Important Notes:

• It is recommended to use VBAT for power supply.
• When using BEC for power supply, ensure that the BEC's output capability is at least 5V@2A.

HDZero ECO套裝旨在為更多飛行員提供低成本、輕巧耐用的數位FPV解決方案，以取代類比視訊。此數位視訊訊號具有穩定的色彩還原和720p逐行掃描視頻，並延續了HDZero一貫的低延遲優勢。

這款價格親民的空中單元是一款突破性的產品－它是第一款採用高清複合視訊訊號的VTX/攝影機組合，無需使用易損的MIPI電纜。

ECO FPV 系統專為 Tiny Whoops 等超輕型無人機精心設計，每一克的重量都至關重要。攝影機擁有 98 度超大垂直視野角，非常適合室內近距離快速飛行。 ECO 圖傳重量約 4.5 克，相機（含線纜）重量約 1.6 克。加上標配的 0.2 克偶極天線，整個 Eco 套裝總重量僅約 6.3 克。

HDZero Eco VTX 技術規格：

複合高清視訊介面

- 1S-3S 輸入

- 25mW/200mW 射頻輸出

- 25 x 25 M2 軟安裝

- 天線保留

- 4.5克/4毫米厚度

HDZero Eco 攝影機規格：

- 寬 14 毫米 x 高 16 毫米 x 厚 13 毫米

- 含線重量 1.6 克

- 1/3吋CMOS感測器

視野：4:3 深度：150° 水平：120° 垂直：98°

- 建議設定

   清晰度：15

   飽和度：8

   . R Surp：8

   亮度：45

重要提示：

• 建議使用VBAT供電。
• 使用 BEC 作為電源時，請確保 BEC 的輸出能力至少為 5V@2A。
