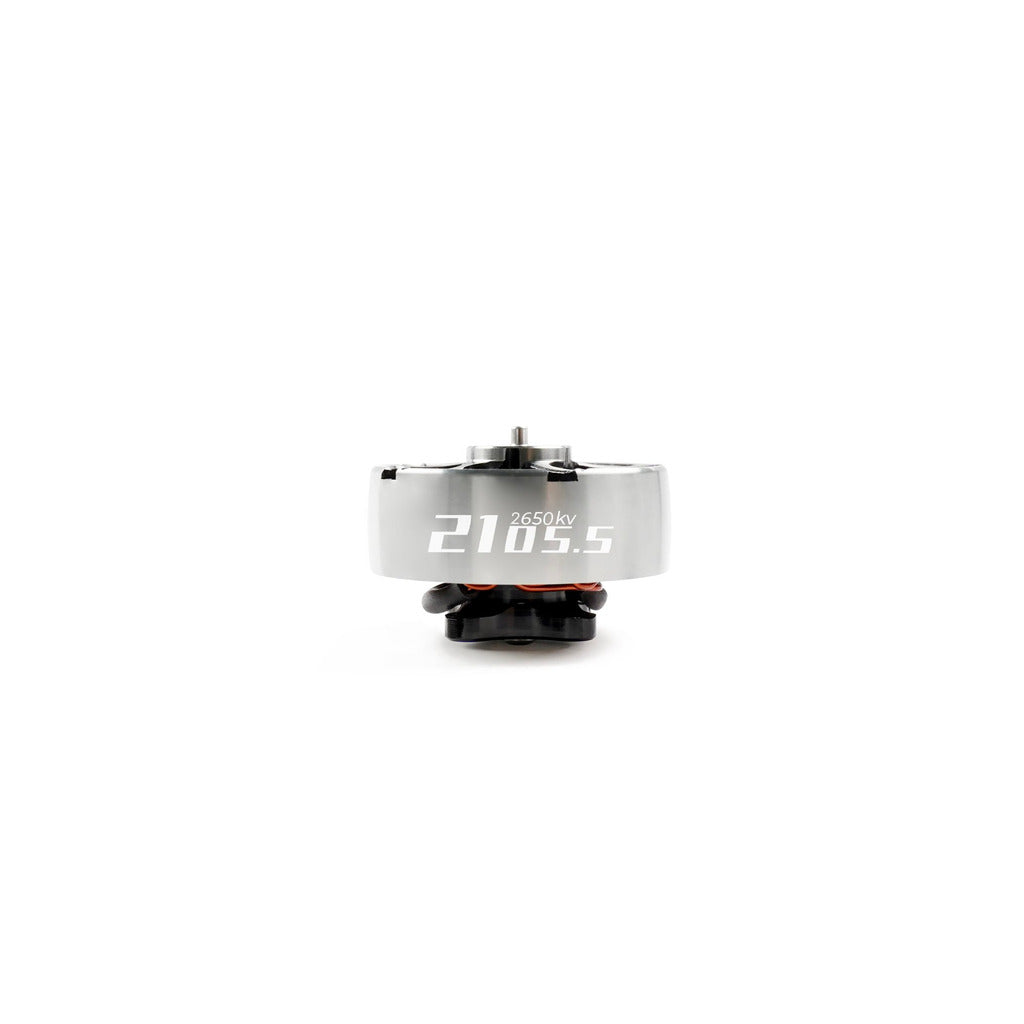

【GEPRC格普】SPEEDX2 2105.5 2650KV Motor 6S 圈圈機 (黑影35)
這是 GEPRC 的FPV 穿越機配件，商品名稱、型號與可確認規格如下。為避免把不同年份或不同版本的參數混用，本頁文字僅整理目前商品標題、選項與既有資料中可核對的資訊；詳細尺寸、接線及安裝示意請一併參閱下方原有說明。
商品重點
- 商品識別：【GEPRC格普】SPEEDX2 2105.5 2650KV Motor 6S 圈圈機 (黑影35)
- 品牌：GEPRC
- 商品類型：馬達
選購與安裝確認
- 請依標題、商品選項及圖片確認型號、尺寸與相容性。
- 安裝、接線或設定前請先斷電，並依原廠說明操作。
- 同系列產品可能因年份、批次或版本而不同，下單前請核對實機。
包裝與出貨說明
本商品依您選擇的規格出貨；若商品名稱、選項或圖片標示數量，出貨內容以該規格為準。商品圖可能同時展示安裝效果或其他搭配零件，未列於所選規格者不包含。若無法確認版本，請在下單前提供實機型號或照片由我們協助核對。
既有詳細資訊與原廠資料
Summary
The GEPRC new generation brushless motor SPEEDX2 2105.5 is an exceedingly innovative brushless motor with an avant-garde style and unique design.
The lightweight design greatly reduces the weight, only 21.0g. The flat motor shape with the exquisite “Hollow out” design in the top of the rotor can be used in improving the efficiency of heat dissipation, the advantage is maintaining a lower temperature for the running motor.
Using customized high-quality materials and professional magnetic circuit design,the SPEEDX2 2105.5 motor with good handling and stably aggressive power. Bringing pilots a super smooth flying experience.
In term of high strength structure design, SPEEDX2 2105.5 also has good durability and crash resistance.It’s a ideal motor for every pilot building their own 3-4 inch FPV quads or 4-5 inch long range FPV quads.
We’ve been pursuing a lighter weight, more responsive, more efficient and more powerful brushless motor.
Feature
1. Lightweight design, only 21.0g.
2. High-quality arc magnetic steel, professional magnetic field design, strong magnetic force, stable motor power output.
3. The flat design motor is very prominent in Freestyle & Racing. Large motor torque, strong explosive force, and extremely fast response speed.
4. Good handling and stable power output bring a super smooth flying experience.
5.The Exquisite “Hollow out” design in the top of the rotor can be used in improving the efficiency of heat dissipation.
6. High-strength motor structure, good durability and crash resistance.
7.The 1.5mm shaft is quite suitable for most of the conventional 3-5 inch FPV quad propellers on the market.
8.Suitable for 3-4 inch FPV quads and 4-5 inch long range FPV quads.
Specification
Item: SPEEDX2 2105.5-2650KV
- KV: 2650KV
- Configuration: 12N14P
- Magnet: N52H ARC
- Stator Diameter: 21mm
- Stator Height: 5.5mm
- Shaft Diameter: Φ3.0mm(in)Φ1.5(out)
- Size: Φ25.65mm*15.7mm
- Lead Wires: 22#AWG 150mm
- No. of Cells (LiPo) : 2-6S
- Max Continuous Power(W) (5S): 559
- Max Current (5S) : 34.9A
- Mounting Holes:12mm x 12mm(M2 Screw)
- Color: Titanium, black
- Weight: 21.0 g
- Suitable Quadcopter:3-4”whoop FPV, 4-5″Toothpick & Long Range FPV
Item: SPEEDX2 2105.5-3450KV
- KV: 3450KV
- Configuration: 12N14P
- Magnet: N52H ARC
- Stator Diameter: 21mm
- Stator Height: 5.5mm
- Shaft Diameter: Φ3.0mm(in)Φ1.5(out)
- Size: Φ25.65mm*15.7mm
- Lead Wires: 22#AWG 150mm
- No. of Cells (LiPo) : 3-4S
- Max Continuous Power(W) : 558
- Max Current (A) : 34.9A
- Mounting Holes:12mm x 12mm(M2 Screw)
- Color: Titanium, black
- Weight: 21.0 g
- Suitable Quadcopter:3-4”whoop FPV, 4-5″Toothpick & Long Range FPV
Include
1 x SPEEDX2 2105.5 Motor
5 x M2*6mm Screw
5 x M2*7mm Screw
