【GEPRC格普】SPEEDX2 1804 2450KV Motor 1pcs (cinebot30適用)
這是 GEPRC 的FPV 穿越機配件，商品名稱、型號與可確認規格如下。為避免把不同年份或不同版本的參數混用，本頁文字僅整理目前商品標題、選項與既有資料中可核對的資訊；詳細尺寸、接線及安裝示意請一併參閱下方原有說明。
商品重點
- 商品識別：【GEPRC格普】SPEEDX2 1804 2450KV Motor 1pcs (cinebot30適用)
- 品牌：GEPRC
- 商品類型：馬達
選購與安裝確認
- 請依標題、商品選項及圖片確認型號、尺寸與相容性。
- 安裝、接線或設定前請先斷電，並依原廠說明操作。
- 同系列產品可能因年份、批次或版本而不同，下單前請核對實機。
包裝與出貨說明
本商品依您選擇的規格出貨；若商品名稱、選項或圖片標示數量，出貨內容以該規格為準。商品圖可能同時展示安裝效果或其他搭配零件，未列於所選規格者不包含。若無法確認版本，請在下單前提供實機型號或照片由我們協助核對。
既有詳細資訊與原廠資料
Summary

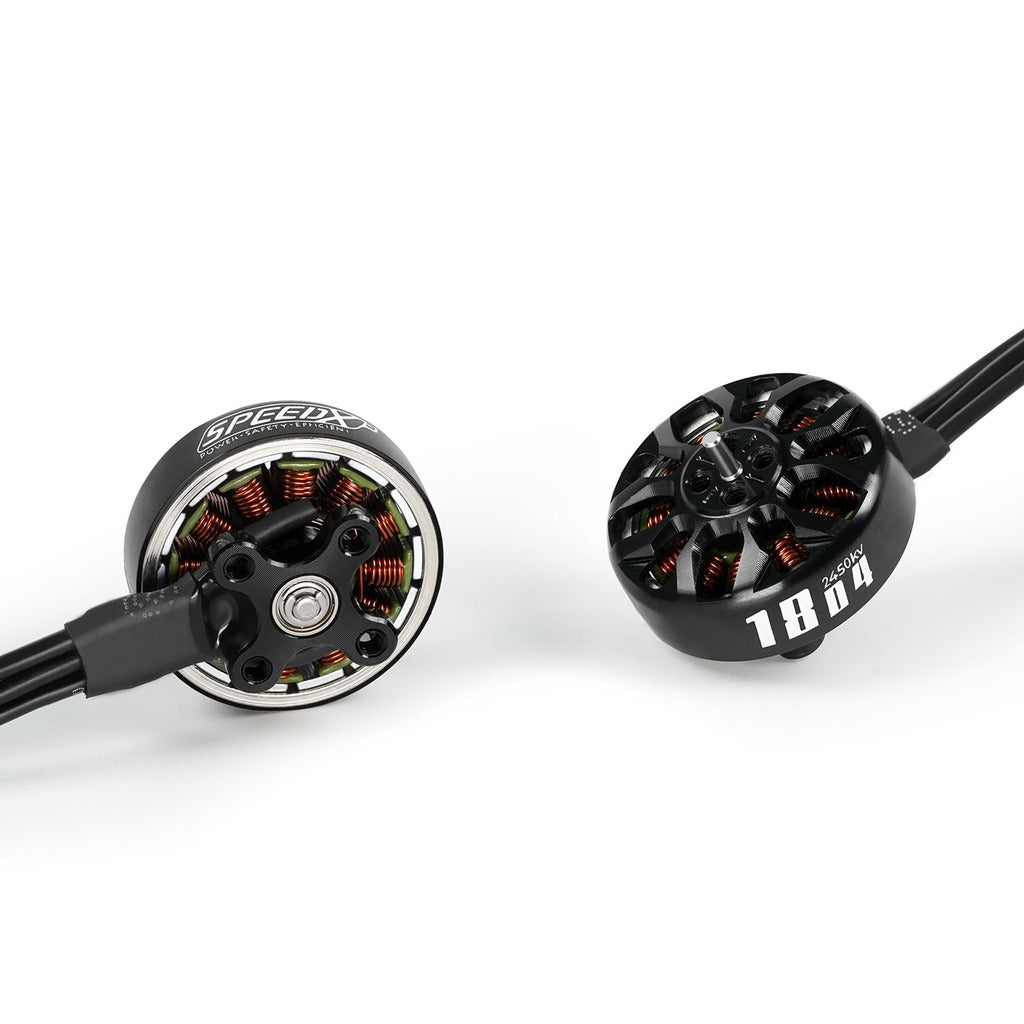

Today we are going to introduce the 2nd generation of SPEEDX2 1804 brushless motor. SPEEDX2 1804 motor is a highly innovative brushless motor with new structure and unique design.
The overall lightweight structure greatly reduces the weight, only 13.2g (13CM wire). Circular arc appearance design, application to the pusher FPV drones, high compatibility. Avoid unbalanced propellers due to the contact between the large pitch propellers and the top of the rotor. A large area of hollowing out to reduce weight, so as to obtain good heat dissipation and efficiency, and effectively control the working temperature of the motor.
Adopt high quality 7075-T aviation aluminum material, which brings better strength to the rotor. With highly efficient magnetic circuit design, SPEEDX2 1804 has great handling and stable explosive power, bringing pilots an ultra smooth flying experience. SPEEDX2 1804 motor is perfect for pilots to build their 3″ whoop FPV, 3-4″Toothpick & Long Range FPV.
GEPRC is committed to providing pilots with brushless motors that are much lighter in weight, faster in response, higher in efficiency and higher in power.
Feature
1. Lightweight design, only 13.g (13CM Wire)
2. High-quality arc magnetic steel, strong magnetic force, and more efficient flight.
3. Optimized magnetic circuit design, large motor torque, strong explosive power, and extremely fast response speed.
4. High strength motor structure, outstanding durability.
5. Suitable for 3″ whoop FPV, 3-4″ Toothpick & Long Range FPV.
Specification
Item: SPEEDX2 1804-2450KV
- Configuration: 12N14P
- Magnet: N52H ARC
- Stator Diameter: 18mm
- Stator Height: 4mm
- Shaft Diameter: Φ2mm(in)Φ1.5mm(out)
- Size: Φ22.74mm*13.2mm
- Lead Wires: 24#AWG 150mm
- No. of Cells (LiPo) : 4-6S
- Max Continuous Power(W) (3S): 452.2W
- Max Current (5S) : 18.8A
- Mounting Holes: 12mm x 12mm(M2 Screw)
- Color: Black / Black + Cyan
- Weight: 13.2 g （13CM Wire）
- Suitable Quadcopter: 3″ whoop FPV, 3-4″ Toothpick & Long Range FPV
Item: SPEEDX2 1804-3450KV
- Configuration: 12N14P
- Magnet: N52H ARC
- Stator Diameter: 18mm
- Stator Height: 4mm
- Shaft Diameter: Φ2mm(in)Φ1.5mm(out)
- Size: Φ22.74mm*13.2mm
- Lead Wires: 24#AWG 150mm
- No. of Cells (LiPo) : 2-4S
- Max Continuous Power(W) (3S): 404.8W
- Max Current (5S) : 25.3A
- Mounting Holes: 12mm x 12mm(M2 Screw)
- Color: Black / Black + Cyan
- Weight: 13.2 g （13CM Wire）
- Suitable Quadcopter: 3″ whoop FPV, 3-4″ Toothpick & Long Range FPV
Includes
1 x SPEEDX2 1804 Motor
5 x M2*6mm Screw
5 x M2*8mm Screw
