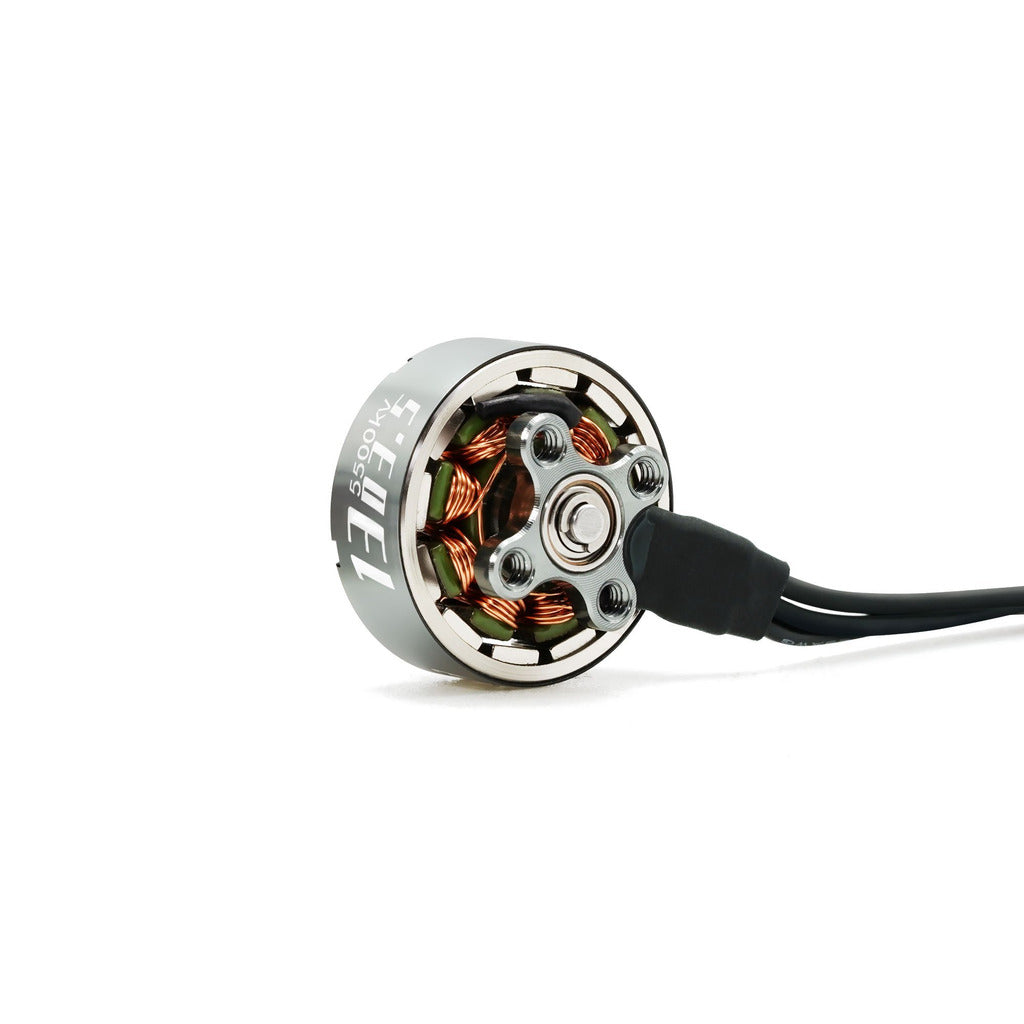

【GEPRC格普】SPEEDX2 1303.5 5500KV Motor (CineLog20適用)
這是 GEPRC 的FPV 穿越機配件，商品名稱、型號與可確認規格如下。為避免把不同年份或不同版本的參數混用，本頁文字僅整理目前商品標題、選項與既有資料中可核對的資訊；詳細尺寸、接線及安裝示意請一併參閱下方原有說明。
商品重點
- 商品識別：【GEPRC格普】SPEEDX2 1303.5 5500KV Motor (CineLog20適用)
- 品牌：GEPRC
- 商品類型：馬達
選購與安裝確認
- 請依標題、商品選項及圖片確認型號、尺寸與相容性。
- 安裝、接線或設定前請先斷電，並依原廠說明操作。
- 同系列產品可能因年份、批次或版本而不同，下單前請核對實機。
包裝與出貨說明
本商品依您選擇的規格出貨；若商品名稱、選項或圖片標示數量，出貨內容以該規格為準。商品圖可能同時展示安裝效果或其他搭配零件，未列於所選規格者不包含。若無法確認版本，請在下單前提供實機型號或照片由我們協助核對。
既有詳細資訊與原廠資料
Summary
The SPEEDX2 1303.5 motor is an innovative brushless motor with a lightweight design, unique appearance and good heat dissipation.
With a lightweight structure, only 6.5g (90mm cable length).The outer rotor uses a blade design, which is exquisite and magnificent. The raised propeller platform has greater compatibility with the inverted mounted propeller models, and avoids the contact between the large-pitch propeller and the top of the rotor to cause the propeller to be unbalanced. A large area is hollowed out to reduce weight, so as to obtain good heat dissipation and efficiency, and effectively control the working temperature of the motor.
SPEEDX2 1303.5 motor is made of high quality 7075-T aircraft aluminum material, which brings better strength to the rotor. Good magnetic circuit design, with stable linearity and efficient explosive power, brings pilots a super smooth flying experience. Perfect for pilots to build their own 2″ cinewhoop FPV drones.
GEPRC is committed to providing pilots with brushless motors that are lighter in weight, faster in response, higher in efficiency and stronger in power.
Specification
Model: SPEEDX2 1303.5-5500KV
- Configuration：9N12P
- Magnet: N52H ARC
- Stator diameter: 13mm
- Stator height: 3.5mm
- Shaft diameter: Φ1.5mm(in)2mm(out)
- Dimension: Φ17.35mm*11.7mm
- Lead wires: 28#AWG 90mm
- Rated voltage (LiPo): 2-4S
- Maximum power: 128.8W
- Maximum current: 8.7A
- Recommended ESC: 35A
- Mounting hole: 9mmx9mm(M2)
- Color: titanium color
- Weight: 6.5g (90MM wire length)
- Suitable models: 2 inch with propeller guard drones or 2.5 inch freestyle drones
Model: SPEEDX2 1303.5-3800KV
- Configuration: 9N12P
- Magnet: N52H ARC
- Stator diameter: 13mm
- Stator height: 3.5mm
- Shaft diameter: Φ1.5mm(in)2mm(out)
- Dimension: Φ17.35mm*11.7mm
- Lead wires: 28#AWG 90mm
- Rated voltage (LiPo): 4-6S
- Maximum power: 139.9W
- Maximunm current: 6.3A
- Recommended ESC: 35A
- Mounting hole: 9mmx9mm(M2)
- Color: titanium color
- Weight: 6.5g (90MM wire length)
- Suitable models: 2 inch with propeller guard drones or 2.5 inch freestyle drones
Feature
1. 7075 aircraft aluminum one-piece high-strength housing makes the motor more durable and crash-resistant.
2. The small size and lightweight design makes the flight feel lighter. The weight with the cable is only 6.5g (90MM cable length), suitable for building a 2-inch drone with propeller guard.
3. Rotor’s large hollow design has a large air intake, and strong temperature control so that the motor runs more stable.
4. N52H strong magnet, with low internal loss stator, the efficiency is significantly improved, making the endurance more durable.
5. The 1.5mm shaft is generally suitable for conventional 2-2.5 inch propellers on the market.
Includes
1 x SPEEDX2 1303.5 motor
6 x M2*6mm screws
6 x M2*8mm screws
