銀角低利率分期可申請 6／12／18／24 期。下單前請先傳訊息至酷飛官方 LINE（@729jvyax）確認有無現貨，避免等候過久。本賣場不提供免運；可使用 7-ELEVEN／全家店到店，請提供門市資料；黑貓宅急便請先洽官方 LINE 確認配送與運費。 【Flywoo】GOKU F722 Pro V2 飛控｜30×30・O4 隨插即用 這是 Flywoo 的飛控與電子零組件，商品名稱、型號與可確認規格如下。為避免把不同年份或不同版本的參數混用，本頁文字僅整理目前商品標題、選項與既有資料中可核對的資訊；詳細尺寸、接線及安裝示意請一併參閱下方原有說明。 商品重點 商品識別：【Flywoo】GOKU F722 Pro V2 飛控｜30×30・O4 隨插即用 品牌：Flywoo 商品類型：FPV
低利率分期與下單前確認
想降低一次付清的壓力，可選擇銀角低利率分期 6／12／18／24 期；實際申請資格、利率、總費用與核准結果以銀角平台審核及訂單顯示為準。
- 下單前請先傳訊息至酷飛官方 LINE（ID：@729jvyax）確認有無現貨，確認後再下單，可避免預購或調貨等待時間過長。
- 本賣場不提供免運服務，運費依配送方式另計。
- 可使用 7-ELEVEN 或全家店到店；請透過官方 LINE 提供超商名稱、門市名稱、店號、收件人姓名與電話。
- 如需黑貓宅急便，請先透過官方 LINE 確認配送方式與運費後再下單。
加入酷飛官方 LINE｜@729jvyax
【Flywoo】GOKU F722 Pro V2 飛控｜30×30・O4 隨插即用
這是 Flywoo 的飛控與電子零組件，商品名稱、型號與可確認規格如下。為避免把不同年份或不同版本的參數混用，本頁文字僅整理目前商品標題、選項與既有資料中可核對的資訊；詳細尺寸、接線及安裝示意請一併參閱下方原有說明。
商品重點
- 商品識別：【Flywoo】GOKU F722 Pro V2 飛控｜30×30・O4 隨插即用
- 品牌：Flywoo
- 商品類型：FPV 配件
- 可選規格：ICM42688／MPU6000
選購與安裝確認
- 確認輸入電壓、電流容量、安裝孔距、接頭與韌體目標。
- 安裝及焊接前請斷電，完成後先檢查短路與極性。
- 首次上電建議使用限流保護並先拆除槳葉。
包裝與出貨說明
本商品依您選擇的規格出貨；若商品名稱、選項或圖片標示數量，出貨內容以該規格為準。商品圖可能同時展示安裝效果或其他搭配零件，未列於所選規格者不包含。若無法確認版本，請在下單前提供實機型號或照片由我們協助核對。
既有詳細資訊與原廠資料

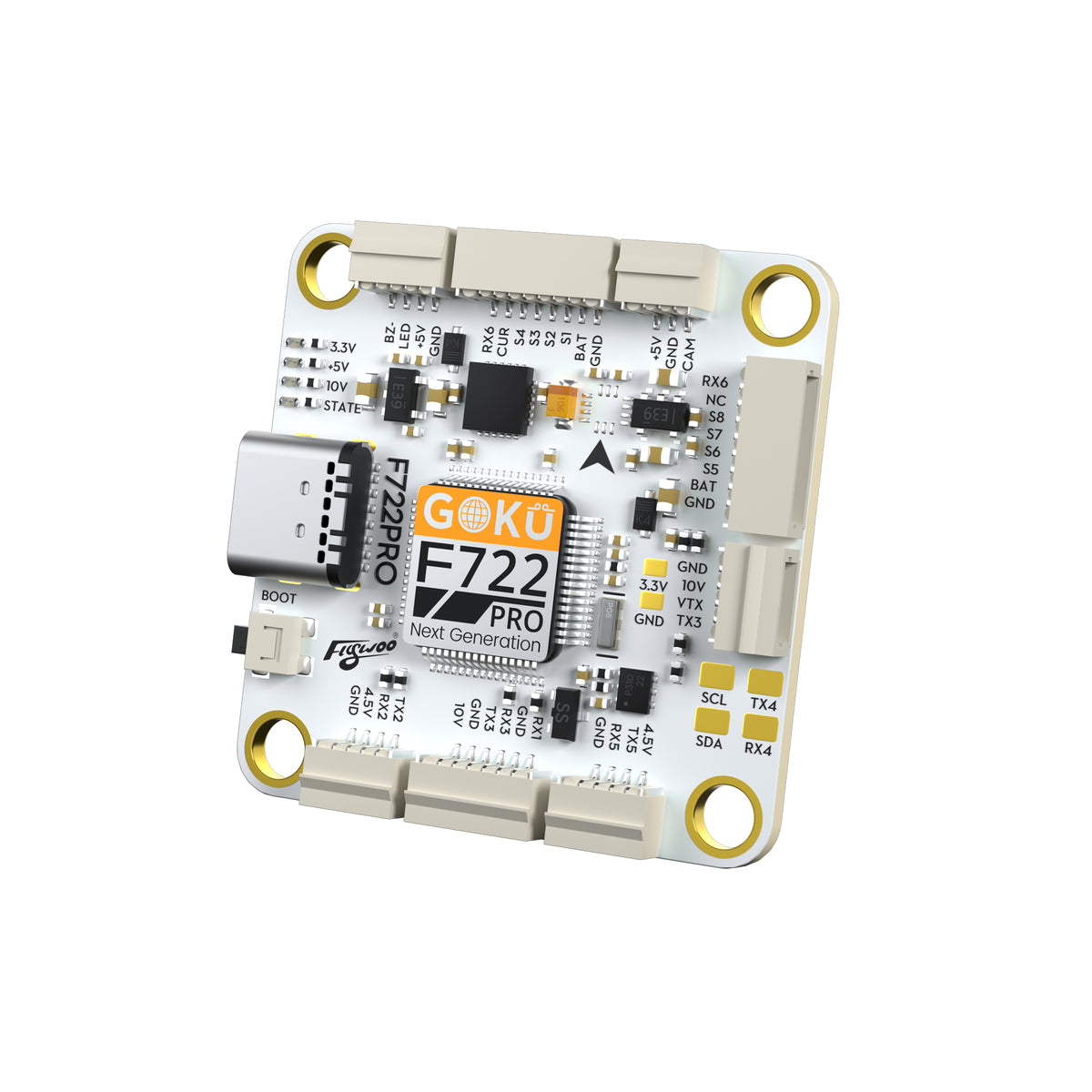

The new generation F722PRO flight controller from FLYWOO not only offers a standard 30.5mm size, high-performance STM32 F722 main control, and MPU6000 \ ICM42688 gyroscope, but it also supports 8 motor outputs and reserves dual 4-in-1 ESC sockets.
It features a user-friendly socket design for all ports, which significantly simplifies the process of connecting devices, thereby enhancing installation efficiency and making maintenance and fault inspection more convenient. This design effectively lowers the threshold for building drones.
Moreover, all solder pads are retained, providing customers with the flexibility to choose their preferred method of device connection.
Furthermore, it includes a plug-and-play feature, specifically designed for the DJI O3 Air Unit, which streamlines the integration process for pilots looking to utilize DJI's advanced digital transmission system with their builds.
Highlights：
High-performance processor: Equipped with the STM32F722 high-performance processor with a processing speed of up to 216MHz for faster response.
Precision gyroscope: Features the MPU6000 \ ICM42688 gyroscope for improved control precision and enhanced flight stability.
Modular installation: Utilizes snap-lock sockets for plug-and-play functionality without the need for soldering, enabling modular installation, and includes reserved solder pads.
Large-capacity black box: Includes a 16MB large-capacity black box to ensure sufficient storage of flight data for later analysis.
Stable current output: Onboard 10V/3A and 5V/3A BEC to provide stable current output for VTX and various peripherals.
Multiple motor outputs: Supports 8 motor outputs and reserves dual 4-in-1 ESC sockets for simplified connections.
Durable design: Utilizes immersion gold PCB manufacturing process to ensure high-temperature and high-current resistance, guaranteeing stable operation.
Specifications：
- Product Name: GOKU F722PRO
- BF Flight Controller Firmware: FLYWOO F722PRO
- INAV Firmware: FLYWOO F7
- MCU: STM32F722
- Gyroscope: MPU6000 \ ICM42688
- OSD: AT7456E
- Barometer: DPS310 / SPL06
- Black Box: 16MB
- UARTS: 1/2/3/4/5/6
- Input Voltage: 7.4V-26V/2-6S LiPo
- BEC: 10V3A/5V3A
- Flight Controller Size: 37mm x 37mm x 8mm
- Mounting Holes: M3 30x30mm
- Weight: 9.9g
In the Box
- 1 x FC&ESC Connection Cable
- 1 x Buzzer Connection Cable
- 1 x GPS Connection Cable
- 1 x DJI O3 Connection Cable
- 1 x Receiver Connecton Cable
- 4 x M3 Shock-Absorbing Ball
- 7 x M3 Rubber Ring
- 1 x Analog VTX Connection cable
- 1 x Camera Connection Cable
⚠️ 下單前請先聯繫酷飛 LINE 官方帳號確認是否有現貨，確認後再下單。
加入 LINE 官方帳號（LINE ID：@729jvyax）
查看酷飛官方商品頁
