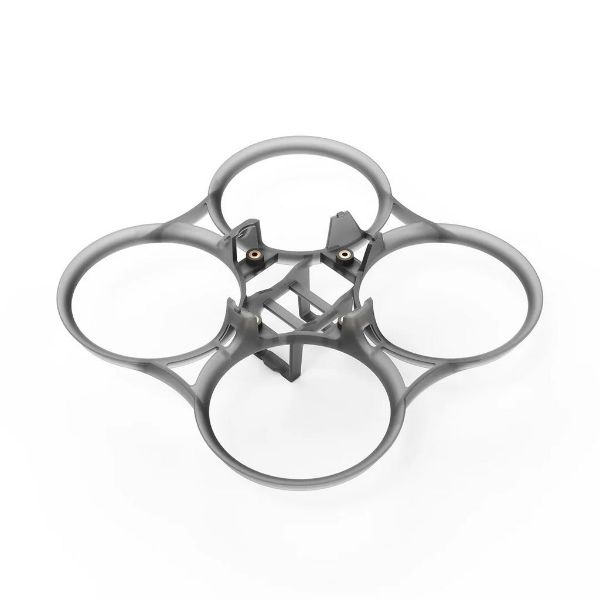

【BETAFPV】Pavo Pico II 無刷涵道機架
這是 BETAFPV 的機架與結構配件，商品名稱、型號與可確認規格如下。為避免把不同年份或不同版本的參數混用，本頁文字僅整理目前商品標題、選項與既有資料中可核對的資訊；詳細尺寸、接線及安裝示意請一併參閱下方原有說明。
商品重點
- 商品識別：【BETAFPV】Pavo Pico II 無刷涵道機架
- 品牌：BETAFPV
- 商品類型：機架
選購與安裝確認
- 確認軸距、安裝孔位、攝影系統空間及適用機型。
- 組裝前先比對螺絲長度，避免過長螺絲碰觸馬達線圈或電子零件。
- 飛行前請檢查結構件、減震件與固定螺絲。
包裝與出貨說明
本商品依您選擇的規格出貨；若商品名稱、選項或圖片標示數量，出貨內容以該規格為準。商品圖可能同時展示安裝效果或其他搭配零件，未列於所選規格者不包含。若無法確認版本，請在下單前提供實機型號或照片由我們協助核對。
既有詳細資訊與原廠資料
Bullet Points
- O4 Air Unit Bracket II: The integrated bracket with 4 shock-absorbing balls eliminate jello for butter-smooth video.
- Simplified Assembly: The supported structure with guided mouting points and 4-screw design make assembly quick and incredibly rigid.
- O4 & O4 Pro Ready Carbon Plate: A redesigned baseplate provides seamless compatibility with both DJI O4 and O4 Pro, offering stunning HD footage and ultimate build versatility.
- Unmatched Durability: The integrated injection molding and supported design create a rock-solid, lightweight foundation for confident flying.
Specifications
- Item: Pavo Pico II Brushless Whoop Frame
- Material: PA12/PP
- Wheelbase: 80mm
- Color: Black/Transparent Gray
- Carbon Plate Thickness: 1.5mm
- Camera Mounting Spacing: 14mm
- Flight Controller Mounting Hole Size: 25.5×25.5mm, compatible with regular whoop FCs
- Motor Mounting Hole Size: 3-M1.4-φ6.6mm
- Battery Slot Size: 16*12.7mm
- Weight: 19g (O4 frame), 9g (whoop duct)
Diagram

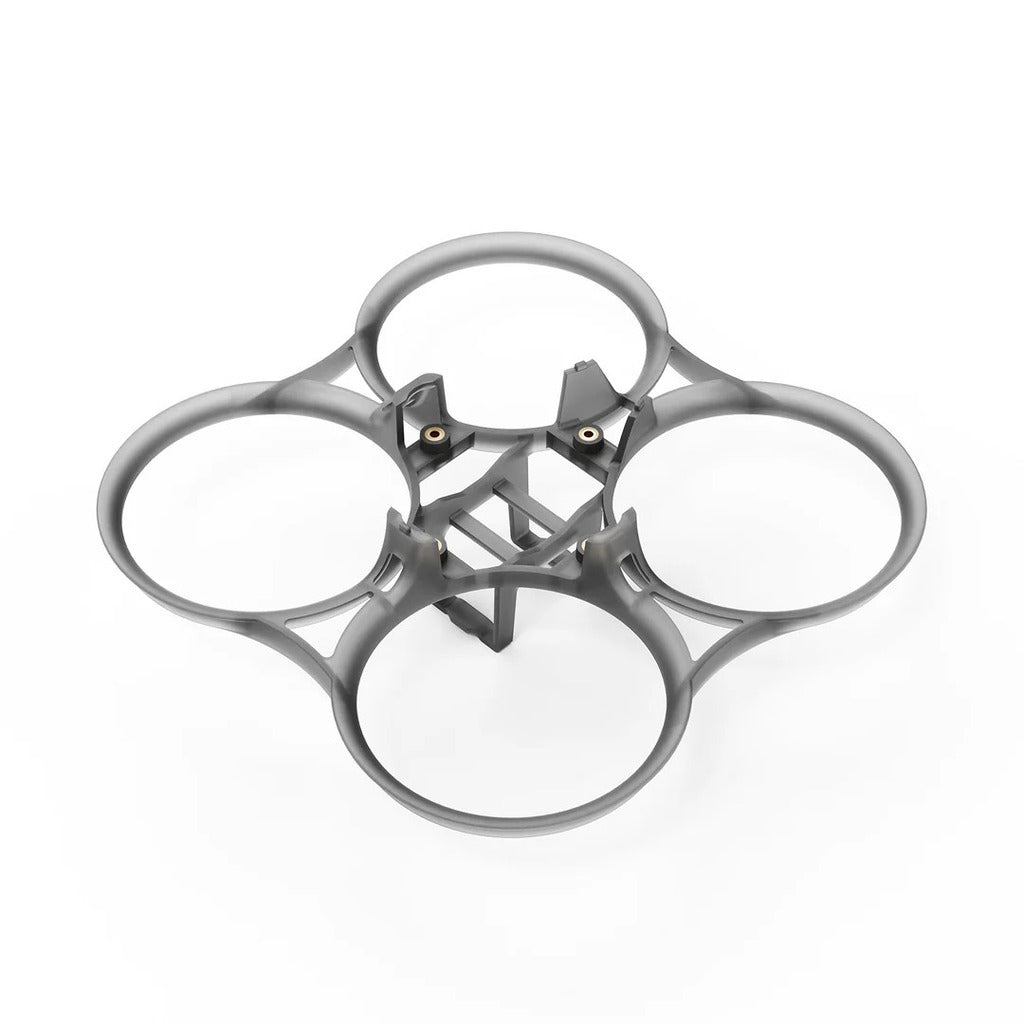

Pavo Pico II Frame
The Pavo Pico II frame revolutionizes assembly simplicity. Featuring embedded nuts, it requires just four screws for a secure connection that withstands crashes and ensures hassle-free building. Its advanced injection-molding technology combines a supported structure and three guided mounting points, guaranteeing perfect carbon plate alignment every time while eliminating flex for an incredibly rigid platform. This streamlined approach makes building a durable and high-performance setup easier than ever.
The newly designed carbon plate seamlessly integrates both the DJI O4 and O4 Pro, future-proofing your build and empowering you to capture stunning HD footage without compromise. With pre-tuned PID parameters optimized for both O4 systems, achieving peak performance is effortless—simply select your configuration via the OSD and fly with confidence.
For pilots seeking even greater versatility, the frame supports extensive DIY customization. Attach battery straps or 3D-printed components to accommodate various battery sizes, tailoring your setup to match specific flight preferences and performance requirements.
Recommended Parts
Pavo Pico II Brushless Whoop Frame (Whoop Duct Version)
- 1 * Pavo Pico II Whoop Duct
