【BETAFPV】Meteor75 Pro 無刷涵道機架
這是 BETAFPV 的機架與結構配件，商品名稱、型號與可確認規格如下。為避免把不同年份或不同版本的參數混用，本頁文字僅整理目前商品標題、選項與既有資料中可核對的資訊；詳細尺寸、接線及安裝示意請一併參閱下方原有說明。
商品重點
- 商品識別：【BETAFPV】Meteor75 Pro 無刷涵道機架
- 品牌：BETAFPV
- 商品類型：機架
- 可選規格：藍／青／橘／白／黃／紅
選購與安裝確認
- 確認軸距、安裝孔位、攝影系統空間及適用機型。
- 組裝前先比對螺絲長度，避免過長螺絲碰觸馬達線圈或電子零件。
- 飛行前請檢查結構件、減震件與固定螺絲。
包裝與出貨說明
本商品依您選擇的規格出貨；若商品名稱、選項或圖片標示數量，出貨內容以該規格為準。商品圖可能同時展示安裝效果或其他搭配零件，未列於所選規格者不包含。若無法確認版本，請在下單前提供實機型號或照片由我們協助核對。
既有詳細資訊與原廠資料
Bullet Point

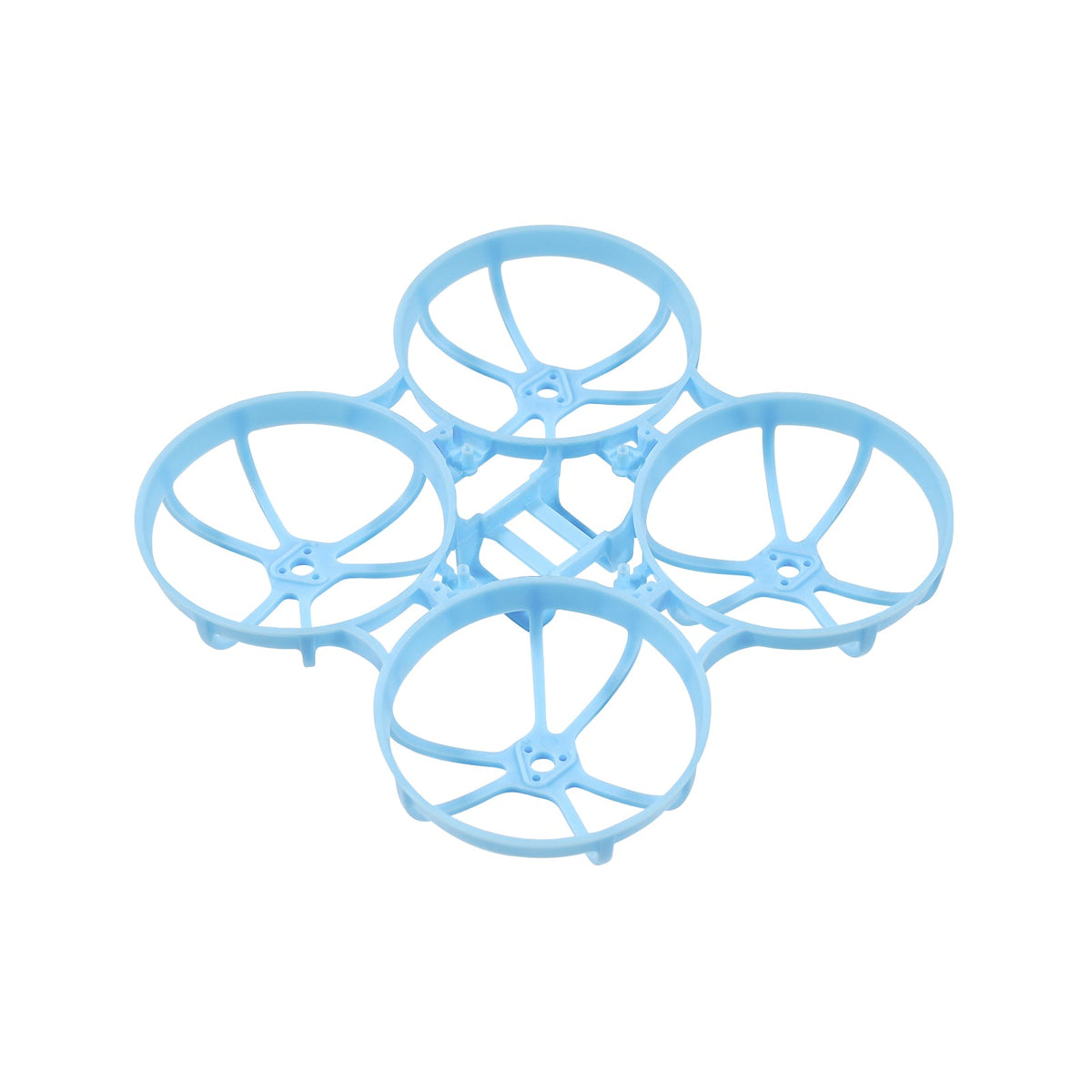

- Meteor75 Pro Brushless Whoop Frame is durable enough with a lightweight of 7.73g.
- The motor holder utilizes a triangle bilateral stretch structure, extremely strong for motor installation. So flying is stable when the quadcopter is at high speed. Recommend motors with triangle mount like 1102, 0802SE Brushless Motors.
- The battery slot is bigger. Pilots can use a larger 1S battery with more capacity. Recommend BETAFPV 450mAh 1S Battery, BT2.0 550mAh 1S Battery.
- The frame is perfect for 45mm propellers like Gemfan 45mm 2-Blade/3-Blade props. It greatly enhances the thrust for 1S whoop, especially when carrying HD digital VTX.
- The Meteor75 Pro frame is completely an upgrade choice for pilots who fly Meteor65, Meteor 65 Pro, or Meteor 75 brushless quadcopter. The electronic parts are compatible with it such as the F4 1S 5A flight controller. Just purchase 45mm props and recommend 1102 motors for more power.
Specification
- Item: Meteor75 Pro Brushless Whoop Frame
- Material: PP
- Wheelbase: 80.8mm
- Weight: 7.73g
- Color: Black/Blue/Cyan/Yellow/Orange/White/Red
- Motor mounting hole: 3-M1.4-φ6.6mm, 1102, 0802SE Brushless Motors
- FC mounting hole: 26*26mm, F4 1S 5A FC
Larger 1S Drone Combo
Meteor75 Pro Frame with 45mm 2-Blade or 3-Blade props performs very precise, agile, and fantastic flying. It is compatible with parts on the 1S Meteor series whoops and is super easy to swap and upgrade build. With 45mm propellers, it is the largest 1S power whoop drone nowadays. It might be perfect for HD VTX indoors.
Please click to purchase 45mm 2-Blade or 3-Blade Propellers.
From Meteor75 to Pro
Meteor75 Pro frame is larger than the classical Meteor75. It is suitable for 45mm propellers, which makes Meteor75 Pro the largest 1S power whoop currently. The motor holder is using a triangle bilateral stretch structure, giving pilots a more durable and smoother flight experience.
The battery slot is enhanced to a wider size of 16.7mm. Meteor75 Pro frame supports 450mAh, 550mAh 1S battery. Recommend using BT2.0 450mAh 1S Battery BT2.0 550mAh 1S Battery, and other brand batteries that can fit the slot.
Recommended Parts
Package
- 1 * Meteor75 Pro Brushless Whoop Frame
