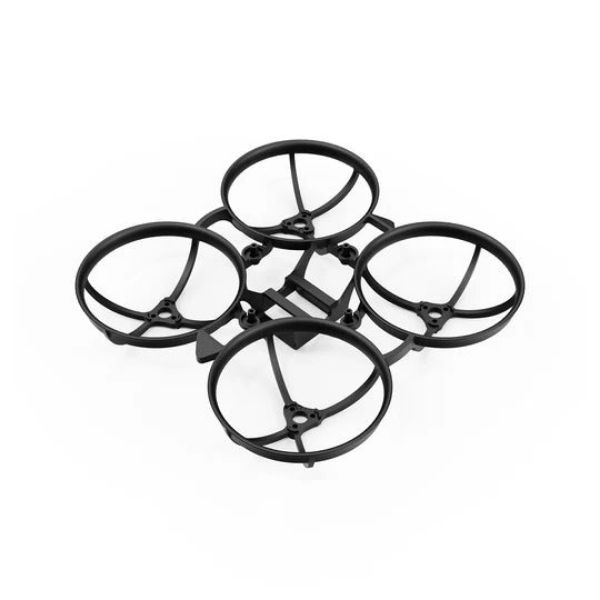

【BETAFPV】Air75 II 無刷涵道機架
這是 BETAFPV 的機架與結構配件，商品名稱、型號與可確認規格如下。為避免把不同年份或不同版本的參數混用，本頁文字僅整理目前商品標題、選項與既有資料中可核對的資訊；詳細尺寸、接線及安裝示意請一併參閱下方原有說明。
商品重點
- 商品識別：【BETAFPV】Air75 II 無刷涵道機架
- 品牌：BETAFPV
- 商品類型：無刷馬達
- 可選規格：藍／橘／紫／灰／白
選購與安裝確認
- 確認軸距、安裝孔位、攝影系統空間及適用機型。
- 組裝前先比對螺絲長度，避免過長螺絲碰觸馬達線圈或電子零件。
- 飛行前請檢查結構件、減震件與固定螺絲。
包裝與出貨說明
本商品依您選擇的規格出貨；若商品名稱、選項或圖片標示數量，出貨內容以該規格為準。商品圖可能同時展示安裝效果或其他搭配零件，未列於所選規格者不包含。若無法確認版本，請在下單前提供實機型號或照片由我們協助核對。
既有詳細資訊與原廠資料
Bullet Points
- Arm braces reduced from 6 to 4 + optimized duct geometry increase 11% thrust—while maintaining uncompromising durability.
- Optimized connecting braces reduce frame amplitude and achieve ideal PID step response.
- Optimized PP blend makes it crash ready.
- Pilot-Focused Details: Motor fixed slots, motor screw protection structure, enlarged FC mounting holes (25.5 × 25.5mm), and lowered duct profile.
- At just 4g, the Air75 II achieves a 10% weight reduction compared to Gen 1.
Specifications

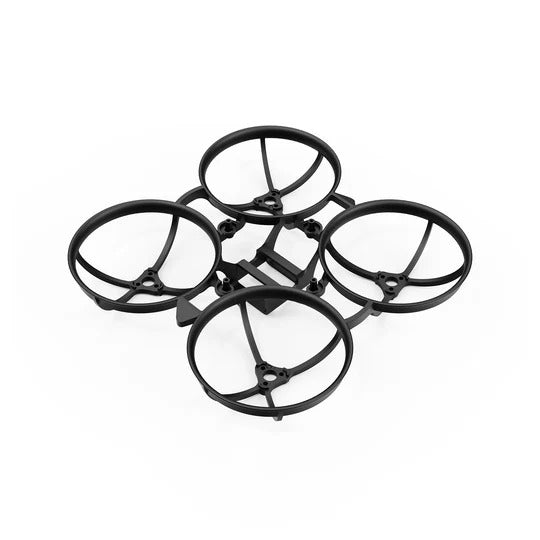

- Item: Air75 II Brushless Whoop Frame
- Material: PP
- Weight: 4.00g
- Wheelbase: 75mm
- Motor Mounting: 3-M1.4-6.6mm
- Flight Controller Mounting Hole: 25.5×25.5mm
- Battery Slot Size: 16.3×6.3mm
- Maximum Size: 99.1*99.1*16.2mm
- Color: Black, Transparent Blue, Transparent Orange, Transparent Purple, Transparent White, Transparent Gray
| | Air75 II Brushless Whoop Frame | Air75 Brushless Whoop Frame |
| Weight | 4.00g | 4.45g |
| Wheelbase | 75mm | 75mm |
| Duct Diameter | 42.0mm | 42.5mm |
| Duct Height | 4.5mm | 4.7mm |
| Arm Braces | 4 | 6 |
| Motor Fixed Slot | Supported | Supported |
| Screw Protection Structure | Supported | Not Supported |
| Propellers | 40mm propellers | 40mm propellers |
Diagram
Frame Reshaped: +11% Thrust
By strategically reducing arm braces from 6 to 4 and refining duct aerodynamics, the Air75 II achieves 11% higher thrust versus Gen 1 – delivering instant throttle response and sustained power for the quadcopter.
Reliable Flight
After dozens of structural refinements, our final connecting arms design effectively reduce frame vibration. Paired with Feedforward tuning, this achieves a near-perfect PID step response – translating to crisp maneuvers and buttery-smooth freestyle flow.
Optimized Resilient Material
Our battle-tested PP blend laughs off concrete kisses and tree bites. Survive your most violent freestyle crashes – and fly home.
Details Matter
Every gram perfected: Retained motor fixed slots ensure precise alignment, new motor screw protection structures deflect crash impacts, and enlarged 1.2mm FC holes fit 1.4mm screws effortlessly. Where pilot priorities meet engineering obsession.
Recommended Parts
- Battery: LAVA 1S 450mAh 75C Battery, LAVA 1S 550mAh 75C Battery, BT2.0 550mAh 1S Battery, BT2.0 450mAh 1S Battery
- FC: Air Brushless Flight Controller, Matrix 1S Brushless Flight Controller (3IN1/4IN1), Matrix 1S Brushless Flight Controller (5IN1)
- Motors: 0702 II Brushless Motors, 0802SE Brushless Motors, 1102 Brushless Motors
- Canopy: Air Canopy, Canopy for Micro Camera 2022, Micro Canopy Lite, Canopy for O4 Air Unit
- Propellers: GF 40mm 2-Blade Propellers, GF 1611 3-Blade Propellers
- Screws: Meteor Series Motor Fixing Screws Pack (40PCS)
Package
- Air75 II Brushless Whoop Frame
