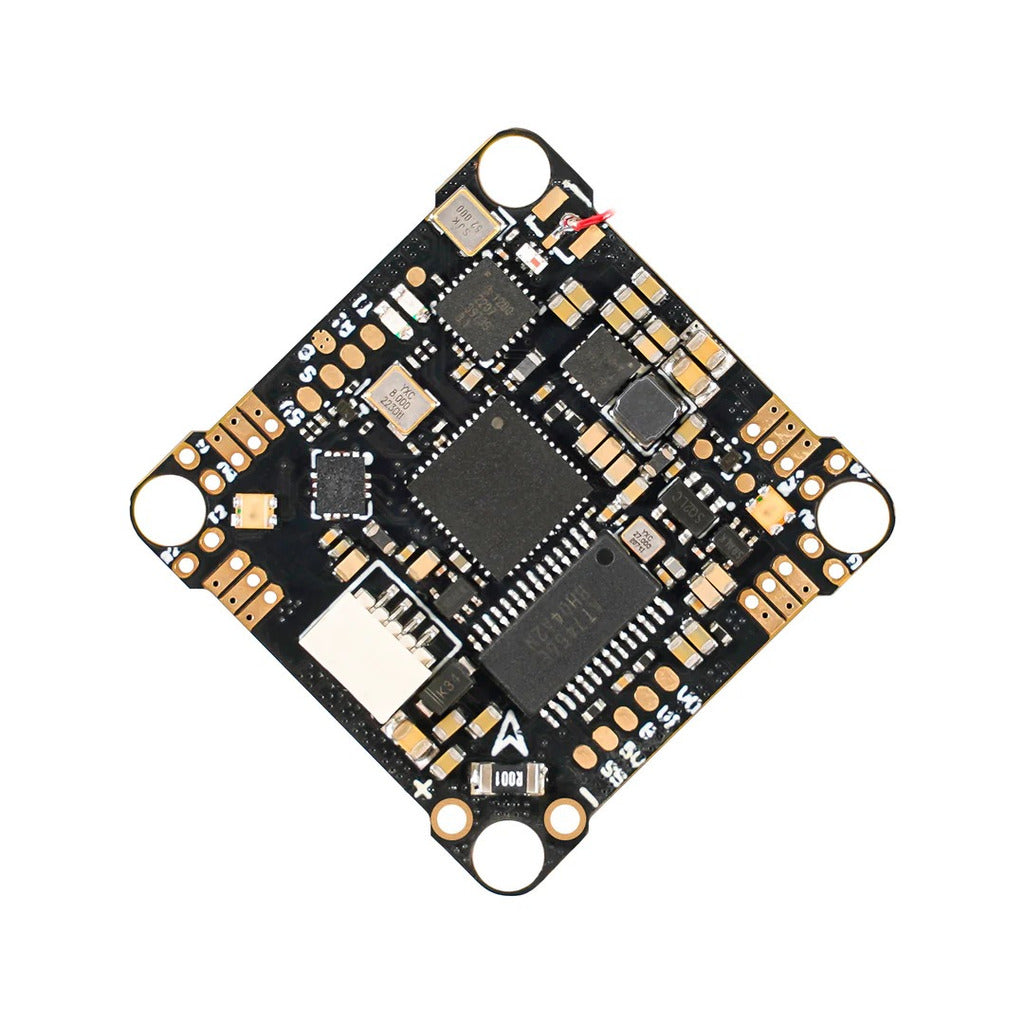

BETAFPV F4 1S 12A 一體式飛控 ELRS 2.4G 適用 85mm 航模／Cetus X 穿越機 12A ESC 整合型輕量飛控
這是 BETAFPV 的飛控與電子零組件，商品名稱、型號與可確認規格如下。為避免把不同年份或不同版本的參數混用，本頁文字僅整理目前商品標題、選項與既有資料中可核對的資訊；詳細尺寸、接線及安裝示意請一併參閱下方原有說明。
商品重點
- 商品識別：F4 1S 12A 一體式飛控 ELRS 2.4G 適用 85mm 航模／Cetus X 穿越機 12A ESC 整合型輕量飛控
- 品牌：BETAFPV
- 商品類型：接收機
選購與安裝確認
- 確認輸入電壓、電流容量、安裝孔距、接頭與韌體目標。
- 安裝及焊接前請斷電，完成後先檢查短路與極性。
- 首次上電建議使用限流保護並先拆除槳葉。
包裝與出貨說明
本商品依您選擇的規格出貨；若商品名稱、選項或圖片標示數量，出貨內容以該規格為準。商品圖可能同時展示安裝效果或其他搭配零件，未列於所選規格者不包含。若無法確認版本，請在下單前提供實機型號或照片由我們協助核對。
既有詳細資訊與原廠資料
Bullet Point
- F4 1S 12A AIO Flight Controller is the best choice for building ultra-lightweight 3" toothpick drones like HX115 SE FPV Quad and 85mm whoop drones. Recommend Meteor85.
- Most of the 1S flight controllers on the market come with 5A ESC by now, but this FC especially integrates 1S 12A ESC, providing more sufficient power for 3" toothpick drones or 85mm whoop drones.
- Built-in current meter, 2 programmable RGB LEDs, and SPI ELRS or Frsky receiver. At the same time, all the pads are left for the external receivers with UART1 and UART2, for buzzers, etc.
- Large pads are reserved for solder motor cables, this design will make solder easier.
Specification of FC
- Item: F4 1S 12A AIO FC
- Weight: 4.74 g (without power cable and BT2.0 connector)
- CPU: STM32F411CEU6 (100MHZ )
- Six-Axis: BMI270 (SPI connection)
- Firmware version: betaflight_4.3.1_BETAFPVF4SX1280 (ELRS) /betaflight_4.2.11_BETAFPVF411RX (Frsky)
- OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
- Receiver: SPI ELRS 2.4G Receiver/SPI Frsky
- Motor Pin Connector: 1.25mm Header Pins
- Mounting Hole Size: 26mm x 26mm (suitable for whoop pattern mounting hole)
- USB Port: SH1.0 4-Pin
Specification of 1S 12A ESC
- Built-in ESC with 12A continuous and peak 25A current
- Input voltage: 1S-2S
- ESC firmware: C_X_30_48_V0.18.1.hex for Bluejay BB51 hardware
- Signal support: D-shot150, D- shot300, D-shot600, Oneshot125, Multishot, PWM
The Bluejay firmware could support the BB51 hardware now. Both ELRS and Frsky boards are powered by BB51 hardware. If you want to setup the ESC specification, please use the BLHeliSuite16714902A_Beta or ESC-Configurator.
Note: Only SPI ELRS 2.4G version supports motor direction set through Betaflight Configurator and SPI Frsky version does not support it. BLHeli Configurator and Bluejay Configurator are invalid for the BB51 ESC (both versions).
Diagram for F4 1S 12A AIO FC
Below is the diagram for SPI ELRS 2.4G board.
Below is the diagram for SPI Frsky board.
The current meter is integrated on the FC board. Here is the configuration in Betaflight Configurator.
12A 1S ESC
Should we really need a 12A ESC for 1S drones? If it is a 65mm or 75mm Whoop drone-like Meteor65, 5A ESC is enough for all actions. But how about with 3" propellers and 1102/1202.5 motors? Still, want smooth and powerful flying actions? The 5A ESC has developed about 3 years ago and was designed for whoop drones with 0603/0802 motors. For the past year, the BETAFPV team has been cooperating with BLHeli author Steffen on the 12A 1S ESC for 3" toothpick drones. Finally, it is here!
SPI ELRS 2.4G RX
This board integrates the receiver with the most popular radio link ExpressLRS since 2021. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. Know more about the ExpressLRS project on Github or join the discussion in the Facebook Group.
This board is designed for long-range 3inch ultralight toothpick drones or 2S whoop drones. If you want to try ExpressLRS on 65mm/75mm whoop drones, please build it with our F4 1S FC board with a built-in SPI ExpressLRS receiver.
F4 1S 12A AIO V2.2 integrates SPI ELRS 2.4G RX. The configuration is as follows.
How to Bind with Betaflight FC with SPI ExpressLRS Receiver.
How to Bind with Betaflight FC with External ExpressLRS Receiver.
More details and discussion on Github about SPI ELRS receiver.
SPI Frsky RX
Come with the built-in SPI Frsky Receiver (CC2500 chip), F4 1S 12A AIO FC can be compatible with Futaba S-FHSS, Frsky D8, and D16 protocol. The default protocol is configured to Frsky D16 FCC out of the factory. Pilots could set up the protocol according to your own need in Betaflight Configurator.
Configuration | Protocol |
FRSKY_D | Frsky D8 |
| FRSKY_X | Frsky D16 FCC (ACCST 1.X version) |
FRSKY_X_LBT | Frsky D16 LBT (ACCST 1.X version) |
SFHSS | Futaba S-FHSS |
How to Bind with Betaflight FC with SPI Frsky Receiver.
Betaflight Firmware and CLI
F4 1S 12A FC board comes with the default firmware betaflight_4.3.1_BETAFPVF4SX1280 (ELRS) or betaflight_4.2.11_BETAFPVF411RX (Frsky). The default firmware for SPI ELRS 2.4G RX version supports ELRS V2.0 RX.
Pay attention, For the SPI ELRS 2.4G version, ONLY the Betaflight firmware 4.3.0 and up start to support this BMI270 gyro. For the SPI Frsky version, DO NOT flash the other firmware. We have already built our own firmware betaflight_4.2.11_BETAFPVF411RX for SPI Frsky RX version to support BMI270 gyro. Please check the below link to download the firmware.
Download the firmware and CLI dump file for the F4 1S 12A FC board (ELRS and Frsky).
Bluejay ESC Firmware
F4 1S 12A flight controller with BB51 ESC hardware could flash the Bluejay ESC firmware now, which is based on BLHeli_S revision 16.7. With Bluejay ESC firmware, it supports bidirectional D-shot and RPM filtering in Betaflight, offers 24KHz, 48KHz, and 96KHz fixed PWM frequency for options, and custom start-up melodies. By using Bluejay ESC firmware on Cetus X and Meteor85 whoop drones with 1103 11000KV motors, the flight time is increasing effectively.
For pilots who want to flash Bluejay ESC firmware for F4 1S 12A FC, please use the BLHeliSuite16714902A_Beta or ESC-Configurator and download Bluejay ESC firmware C_X_30_.HEX from the below links.
Note: Only SPI ELRS 2.4G version supports motor direction set through Betaflight Configurator and SPI Frsky version does not support it. BLHeli Configurator and Bluejay Configurator are invalid for the BB51 ESC (both versions).
Connecting External RX/HD Digital or Analog VTX
Both SPI ELRS 2.4G RX and SPI Frsky RX version support external HD digital VTX or Analog VTX. Please note that the board reserves an SBUS port and a UART port, which is available for the SBUS protocol receiver or other external receivers. You can refer to the below picture.
Recommend Parts
If you want to try the popular ExpressLRS receiver version for long-range performance, highly recommend you check the items for the ExpressLRS series.
Package
- 1 * F4 1S 12A AIO FC
- 4 * Anti-vibration Rubber Dampers
- 4 * M2 x 10mm Screws
- 4 * M2 x 10mm Screws
- 4 * M2 Screw Nut
- 8 * PH-1.25 Connectors for Motor
- 1 * SH1.0 4-Pin Cable
- 1 * SH1.0 4-Pin to USB Type-C Adapter
